TWIN-N 2-axis servo drives, with power ratings of 2x 1.4kVA, 2x 3.5kVA, 2x 5.6kVA, are designed for market sectors such as packaging, pick & place, tobacco machines, automatic stores and automatic machinery in general where rapid acceleration/deceleration is required.

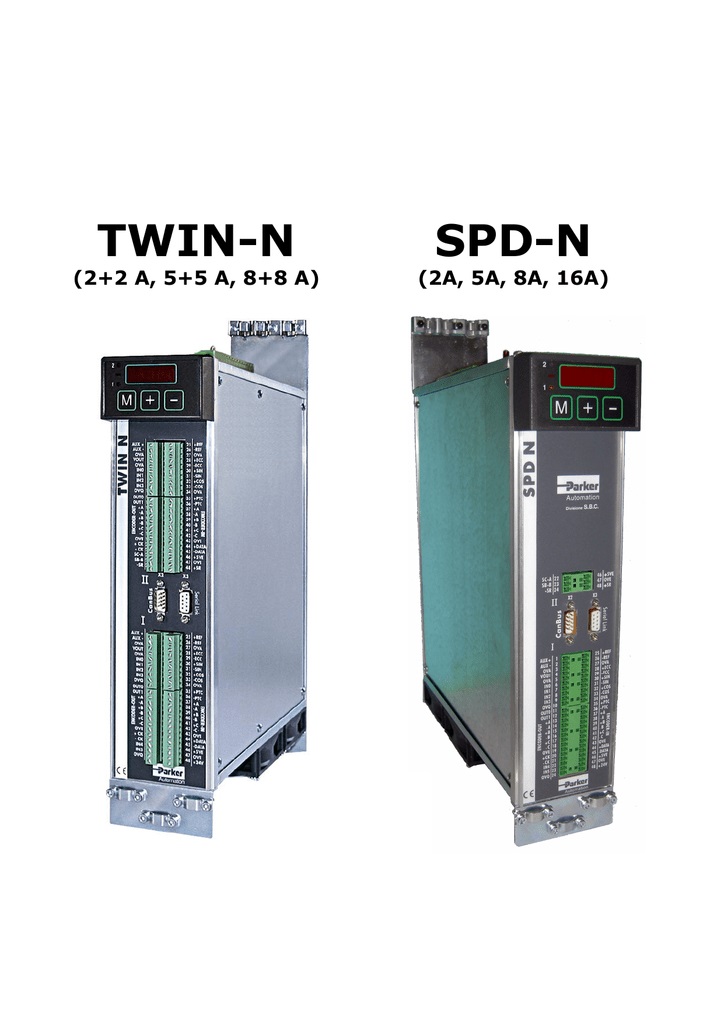

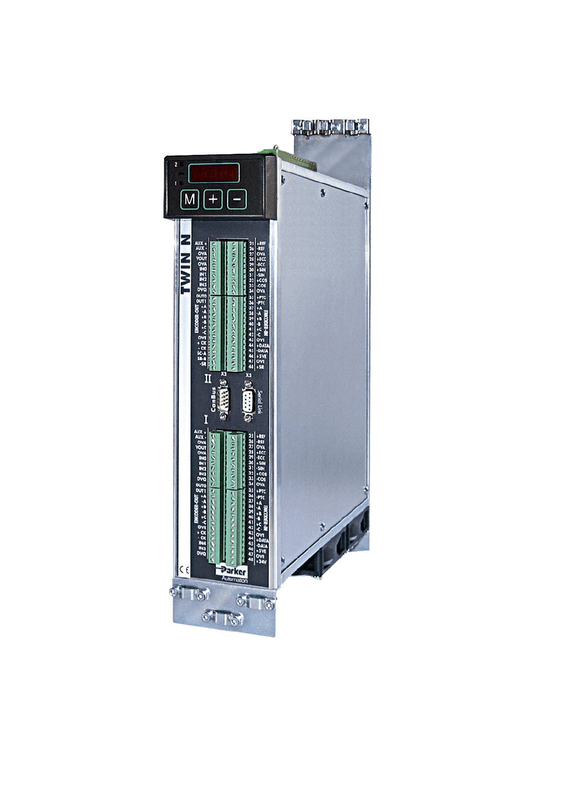

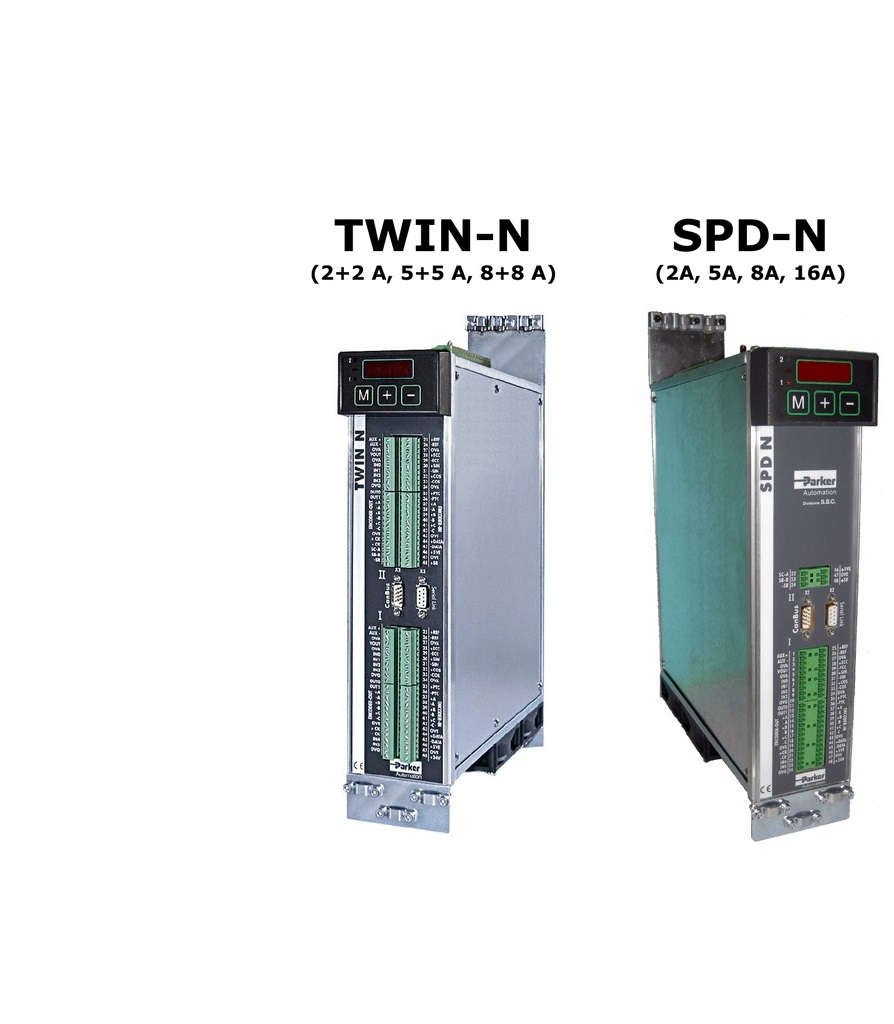

TWIN-N is a series of fully-digital, compact and high performance servo drives for the simultaneous and independent control of two brushless servo motors. The TWIN-N series is suitable for multi-axis applications where compact size and reduced costs are priority factors. The TWIN-N is complemented by the SPD-N series, which adds a single axis option.
The TWIN-N drives are designed for single/three phase 230VAC or 380-480VAC three-phase input supplies and have an output rating of 2x 2A (1.4kVA/axis), 2x 5A (3.5kVA/axis) and 2x 8A (5.6kVA/axis). TWIN-N drives are designed for market sectors such as packaging, pick & place, tobacco machines, automatic stores, and automatic machinery in general, where rapid acceleration and deceleration are critical application factors.
|PRODUCT TYPE||Servo Drive|
|DRIVE FORMAT||Multi Axis Technology|
|INPUT SUPPLY VOLTAGE||
|CONTINUOUS OUTPUT CURRENT RATING||2* 2A; 2* 5A; 2* 8A|
|SUPPORTED MOTOR TYPES||Brushless Servo|
|SUPPORTED FEEDBACK DEVICE||
Hiperface Absolute Encoder
|MODES OF CONTROL||
Programmable Control - Proprietary Language
Position Control (External Command)
Velocity Control (External Command)
Torque Control (External Command)
Analog Command Input
Step/Direction Command Input
RS232 / RS485
|OPERATING TEMPERATURE (C)||0 - 45|
|OPERATING TEMPERATURE (F)||32 - 113|
CE (EMC & LVD)
