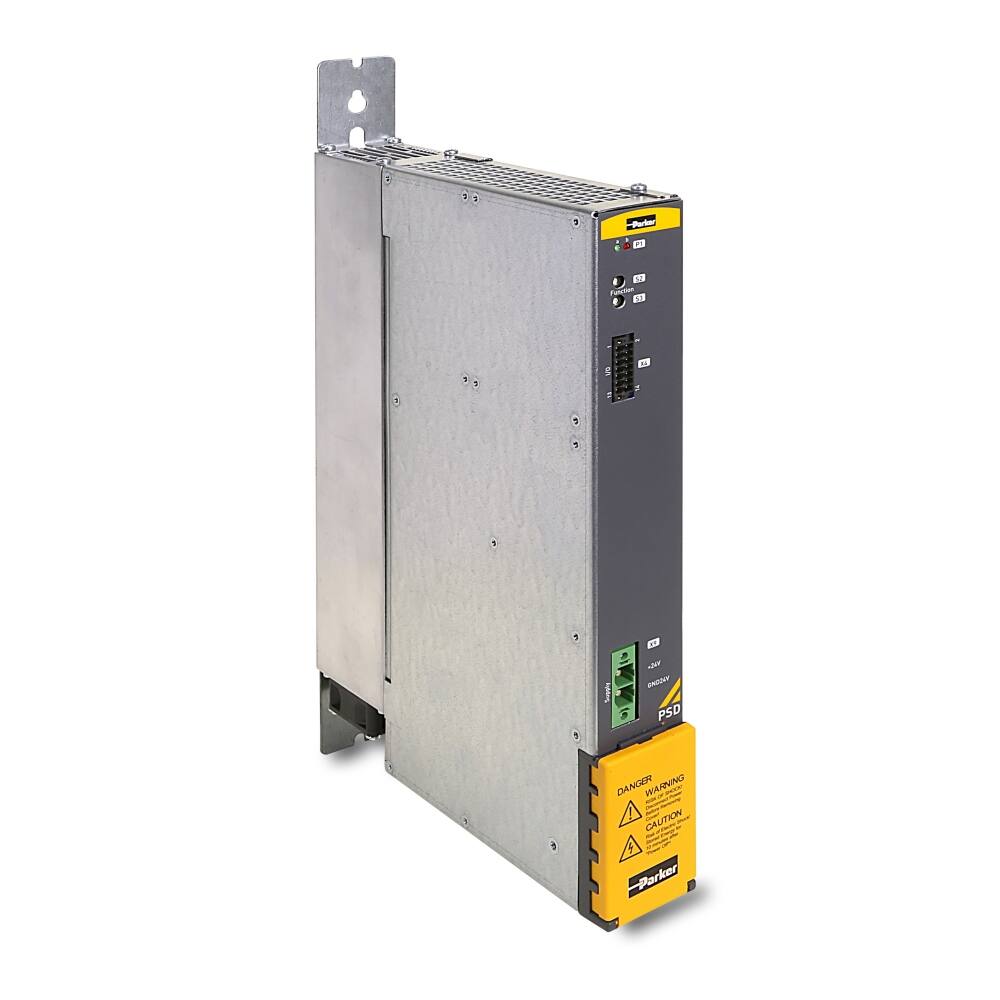

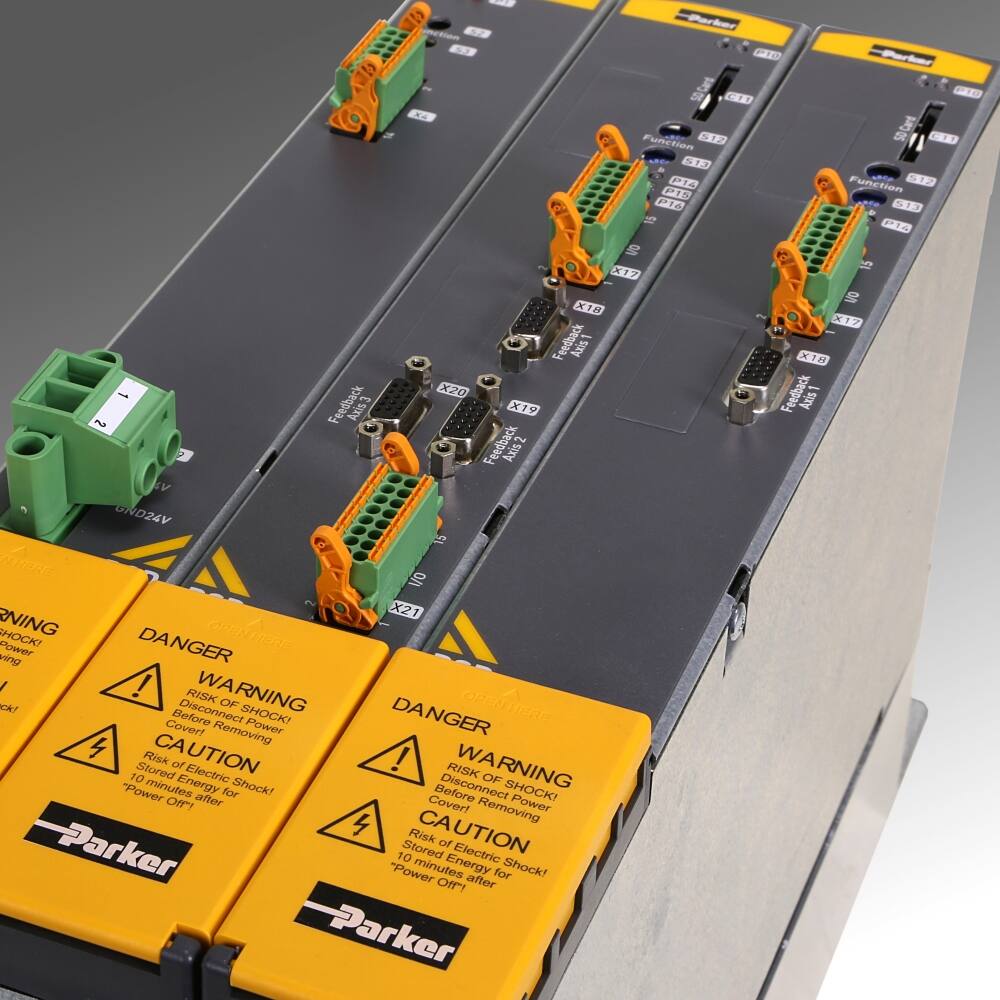

Passive Power Supply Module

For use with PSD1M Multi-Axis Servo Drives

PSD1M Passive Power Supplies have a continuous output rating of 10kVA with a peak of 20kVA and 20kVA with a peak of 40kVA for up to 5 seconds. Designed for use with the PSD1M-Series Multi-Axis Servo Drives, it may be used to power several axes via the energy saving common DC-bus.

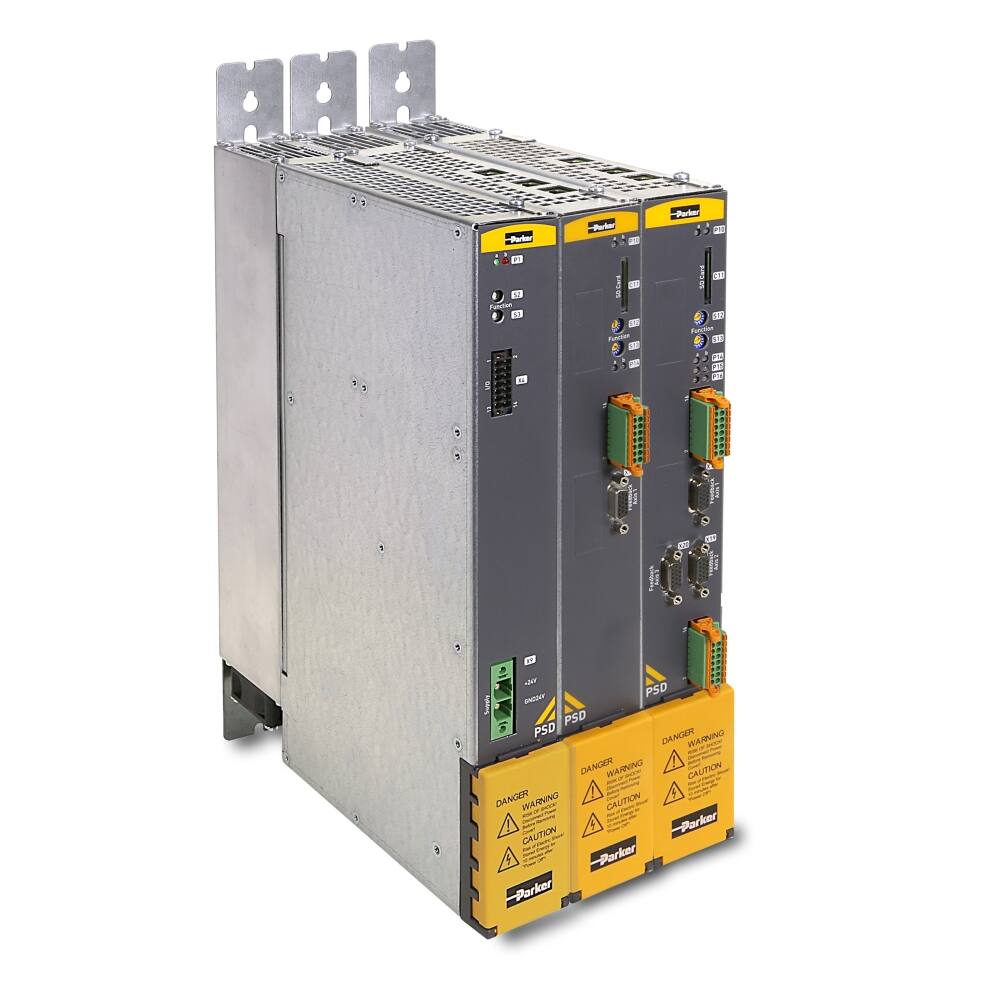

PSD1M passive power supply provides flexiblity, plus cost and energy savings, and is particularly suitable for all centralised automation systems, such as those found in many packaging machines, where large numbers of drives are often required. They are designed for use with the PSD1M-series multi-axis servo drives. The base configuration consists of a common DC bus supply and multiple PSD1-M servo drive modules, connected through DC bus bars - permitting energy sharing between axes.

    Markets:
  • • Factory Automation
  • • Packaging Machinery
  • • Miscellaneous Industrial

    Features/Benefits:
  • • Efficient power control - Common DC bus connection for energy exchange between drives
  • • Reduced Machine Footprint

    Applications:
  • • Material forming machines
  • • Textile machines
  • • Plastics machines
  • • Printing machines
  • • Handling machines

    Technical Specifications:

  • PSD1M Multi-Axis Passive Power Supply Overview:
  • • Power Supply Input Supply : 3x 230-480VAC
  • • Power Supply Output Voltage : 325-680VDC

  • • Power Supply Continuous Output Rating :
  • - 6kVA at 230VAC input (9kVA with optional line choke)
  • - 10kVA at 400/480VAC input (15kVA with optional line choke)

  • and

  • - 12kVA at 230VAC input (19kVA with optional line choke)
  • - 20kVA at 400/480VAC input (30kVA with optional line choke)

  • • Power Supply Peak Output Rating (<5 sec) :
  • - 12kVA at 230VAC input (18kVA with optional line choke)
  • - 20kVA at 400/480VAC input (30kVA with optional line choke)

  • and

  • - 24kVA at 230VAC input (32kVA with optional line choke)
  • - 40kVA at 400/480VAC input (56kVA with optional line choke)

  • • CE + UL/cUL Listed
BRAND PSD1
DRIVE FORMAT Multi Axis Technology
INPUT SUPPLY VOLTAGE 3*230-480VAC
MAXIMUM OUTPUT 10kVA at 400/480VAC input (15kVA with optional line choke)
20kVA at 400/480VAC input (30kVA with optional line choke)
OPERATING TEMPERATURE (C) 0-40
OPERATING TEMPERATURE (F) 32-104
CERTIFICATES CE (EMC & LVD)
UL Listed
cUL Listed
RoHS Compliance
