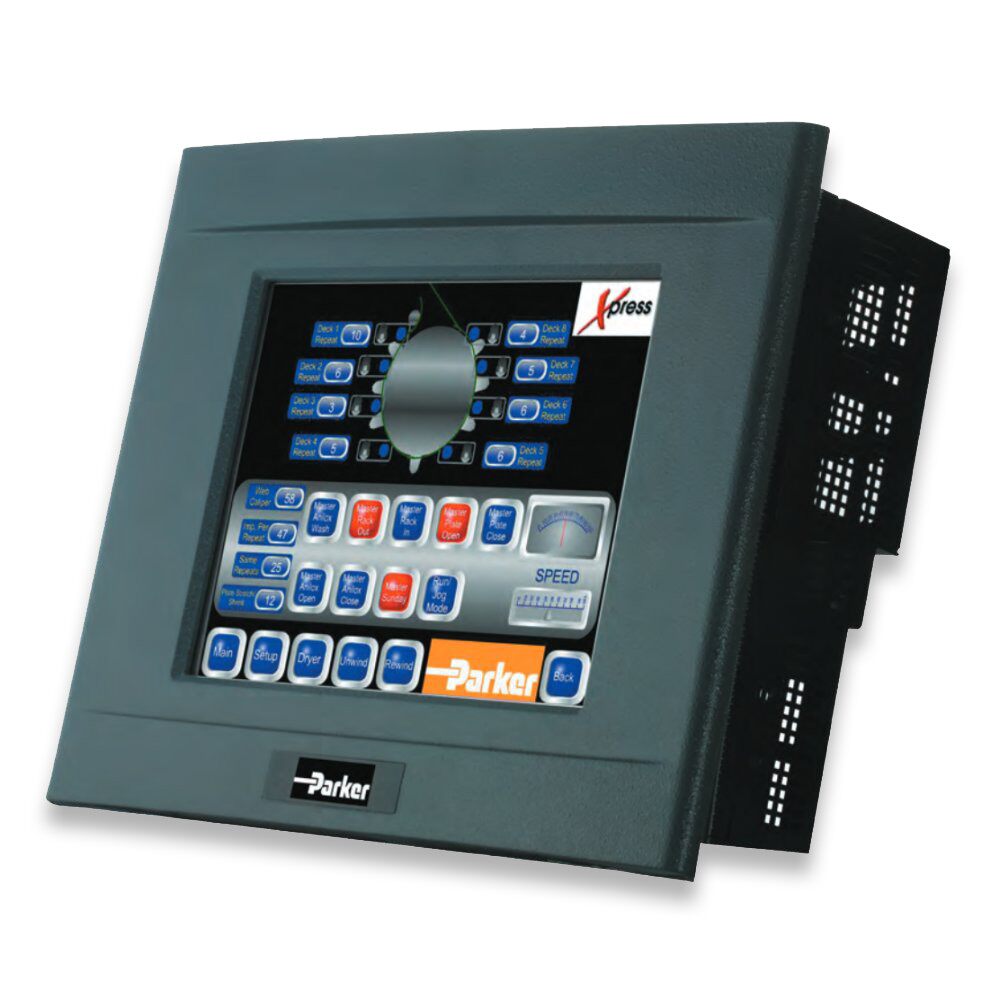

Interact Xpress XPR2 Series - Distributed Human Machine Interface in a durable and affordable package.
The XPR PowerStation line offers a hardware/software solution that simplifies and cost-reduces distributed HMI applications. Available with a 6", 8", 10", 15" TFT panel mount touch screen or non-display system. XPR models are designed to optimize the performance, storage and connectivity features of Interact Xpress HMI software. This CE-based workstations features the latest embedded processor technology supporting fanless operation, CompactFlash® storage, USB, serial and 100Base T Ethernet connectivity.
Take full advantage of the web for; panel pc design, publishing, runtime and support.
Interact Xpress fully leverages the wide availability of web browsing software to enable distributed HMI software, remote support and application sharing on the internet and IP networks. Interact Xpress HMI applications are developed, edited, published and run in an operator panel that is a web server, allowing users and OEMs to easily publish upgrades and applications to any global location with an internet connection and a web browser. Interact Xpress combines a rich, graphical runtime interface with HMI development tools that can be accessed from either the touch panel or any PC running Internet Explorer®.
Complete Transparency and Supervisory Control:
Interact Xpress provides your system an industrial pc with a connection to the rest of the company or the rest of the world. It offers a completely web-published environment where any plant-floor data or information can be accessed from any web browser with an Ethernet connection to the XPR PowerStation on your machine.
Parker's HMI with InteractX SCADA delivers your plant-floor data wherever it's needed, when it's needed.
|PRODUCT TYPE||Automation Panel / Dedicated HMI|
|DISPLAY TYPE||Color TFT|
|INTERFACE TYPE||Analog Resistive Touchscreen|
|MAXIMUM SCREEN RESOLUTION (PIXELS)||6" - 10": 640x480
|BACKLIGHT LIFE (HOURS)||6": 75,000
8 - 10": 50,000
|OPERATING SYSTEM||Windows CE 5|
|HMI SOFTWARE||Interact Xpress|
|I/O PORTS||N2x USB
1x 100 BaseT Ethernet
|CPU||AMD LX800 (500 MHz)|
|SYSTEM MEMORY (DRAM)||256MB - 1GB|
|CLIENT DATA STORAGE|| 512MB
8GB (CompactFlash, type 1&2)
|INPUT SUPPLY VOLTAGE||12-24VDC (6"/No Display)
|OPERATING TEMPERATURE (C)||0 ... 50|
|OPERATING TEMPERATURE (F)||32 ... 122|
|OPERATING HUMIDITY||10-95% (non-condensing)|
|PROTECTION/INGRESS RATING||UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment
Stainless Steel bezel optional on 15"
Class 1 Division 2 (optional)
