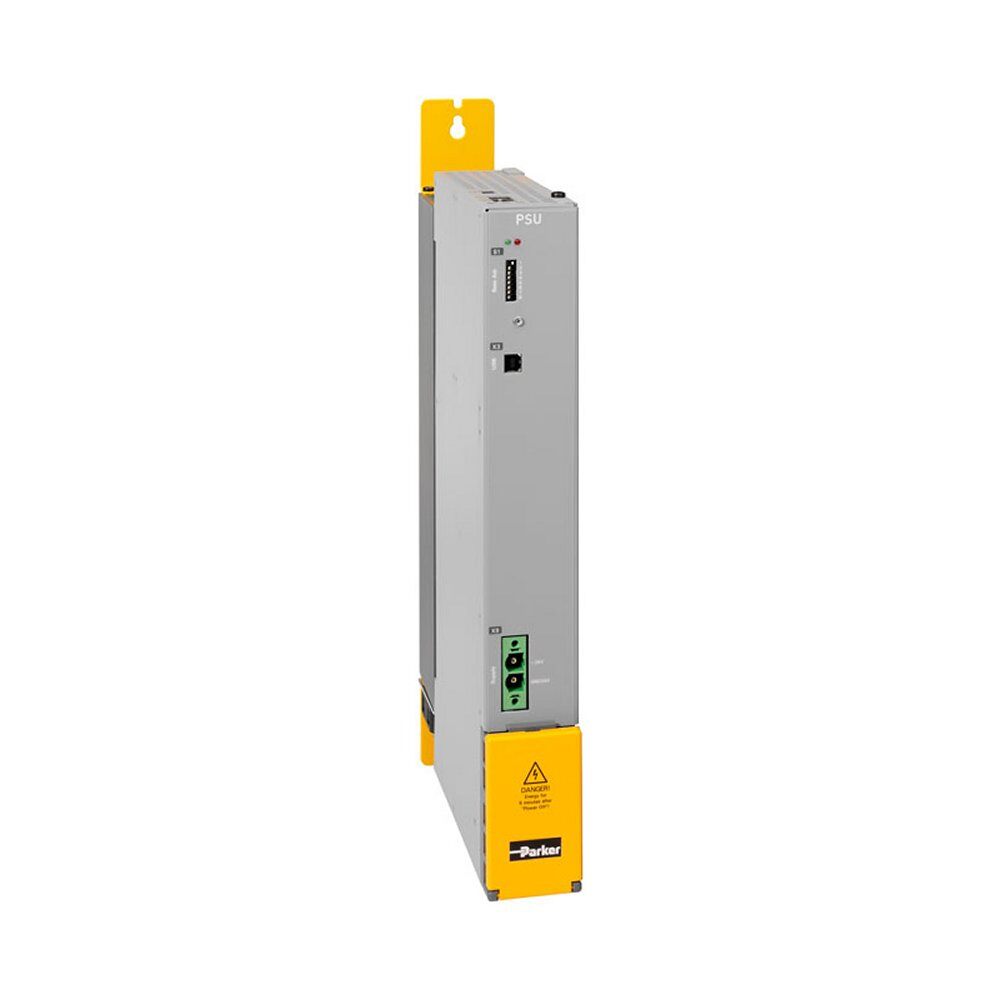

PSUP-Series Power Supply Modules provides flexiblity, plus cost and energy savings, and is particularly suitable for all centralised automation systems, such as those found in many packaging machines, where large numbers of drives are often required. They are designed for use with Compax3M and TPD-M multi-axis servo drive systems and offer continous output ratings of 10, 20 or 30kVA. The base configuration consists of a common DC bus supply and multiple servo drive modules, connected through DC bus bars - permitting energy sharing between axes.

Markets:
• • Factory Automation
• • Machine Tools
• • Packaging Machinery
• • Miscellaneous Industrial

Features/Benefits:
• • Efficient power control - Common DC bus connection for energy exchange between drives
• • Reduced Machine Footprint

Applications:
• • Material forming machines
• • Textile machines
• • Paper and converting lines
• • Plastics machines
• • Printing machines
• • Handling machines

Technical Specifications:
PSUP10D6USBM00 Multi-Axis Power Supply Overview:
• • Power Supply Output Voltage : 325-680VDC
• • Power Supply Continuous Output Rating :
• - 6kVA at 230VAC input
• - 10kVA at 400/480VAC input
•
  • Power Supply Peak Output Rating (<5 sec) :
• - 12kVA at 230VAC input
• - 20kVA at 400/480VAC input

PSUP20D6USBM00 Multi-Axis Power Supply Overview:
• • Power Supply Output Voltage : 325-680VDC
• • Power Supply Continuous Output Rating :
• - 12kVA at 230VAC input
• - 20kVA at 400/480VAC input
•
  • Power Supply Peak Output Rating (<5 sec) :
• - 24kVA at 230VAC input
• - 40kVA at 400/480VAC input

  PSUP30D6USBM00 Multi-Axis Power Supply Overview:
• • Power Supply Output Voltage : 325-680VDC
• • Power Supply Continuous Output Rating* :
• - 17kVA at 230VAC input
• - 30kVA at 400/480VAC input
•
  • Power Supply Peak Output Rating (<5 sec)* :
• - 34kVA at 230VAC input
• - 60kVA at 400/480VAC input

*The PSUP30 requires the addition of a mains line choke (LCG-0055-0,45mH) to achieve the stated performance.
