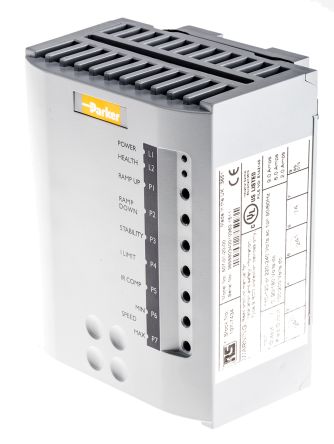

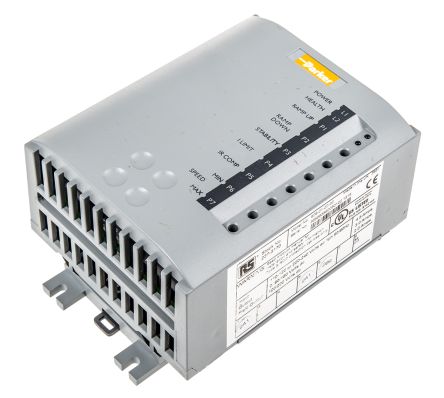

The 506, 507 and 508 series 1-quadrant DC drives break new ground in cost-effective DC motor control. Available in 3, 6, 12A armature ratings, with power ratings up to 1.5 KW, the feature packed minimum footprint design is ideal for speed or torque control of permanent magnet or shunt wound DC motors fed from single phase supplies. Typical applications include conveyors, basic speed control and packaging machinery.

Features:
• • Low-cost / high-featured design
• • IP20 protected covers

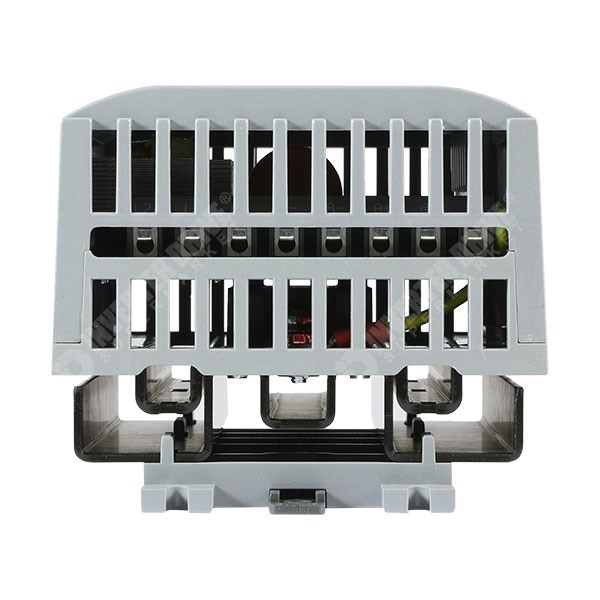

• • Compact footprint and DIN rail mounting
• • Selectable 110 VAC or 230 VAC supply
• • Selectable tacho or armature voltage feedback

Standards:
• • CE Marked to EN50178 (Safety, Low Voltage Directive)
• • CE Marked to EN61800-3 (EMC Directive) with external filter
• • NRTL Listed to US Standard UL508C
• • NRTL listed to Canadian standard C22.2#14

Technical Specifications:
•
  Power Supply:
• Single Phase
• 110-120 VAC ± 10 %, 50-60 Hz ± 5%
• 220-240 VAC ± 10 %, 50-60 Hz ± 5%

Output Current Ratings:
• 3A (506)
  6A (507)
  12A (508)

Available Field Current:
• up to 2A DC

Environment:
• 0-45°C / 32-113°F
• Up to 1000m ASL (derate 1% per 100m to 2000m maximum)

Protection:
• IP20

Speed Feedback:
• - Tachogenerator
  - Armature Voltage Feedback

Control Signals:
• - Zero Speed
  - Drive Healthy
  - Speed Feedback

Motor Protection:
• - Stall condition 15 seconds internal
• - Electronic Overload Protection

Potentiometers:
• - Maximum Speed
• - Minimum Speed
• - Acceleration Rate (1-15s)
• - Deceleration Rate(1-15s)
• - Stability
• - I.R. Compensation
• - Current Limit (0-100%)

Options:
• - EMC filters
• - Line reactors for European and North American markets (UL-CSA)
