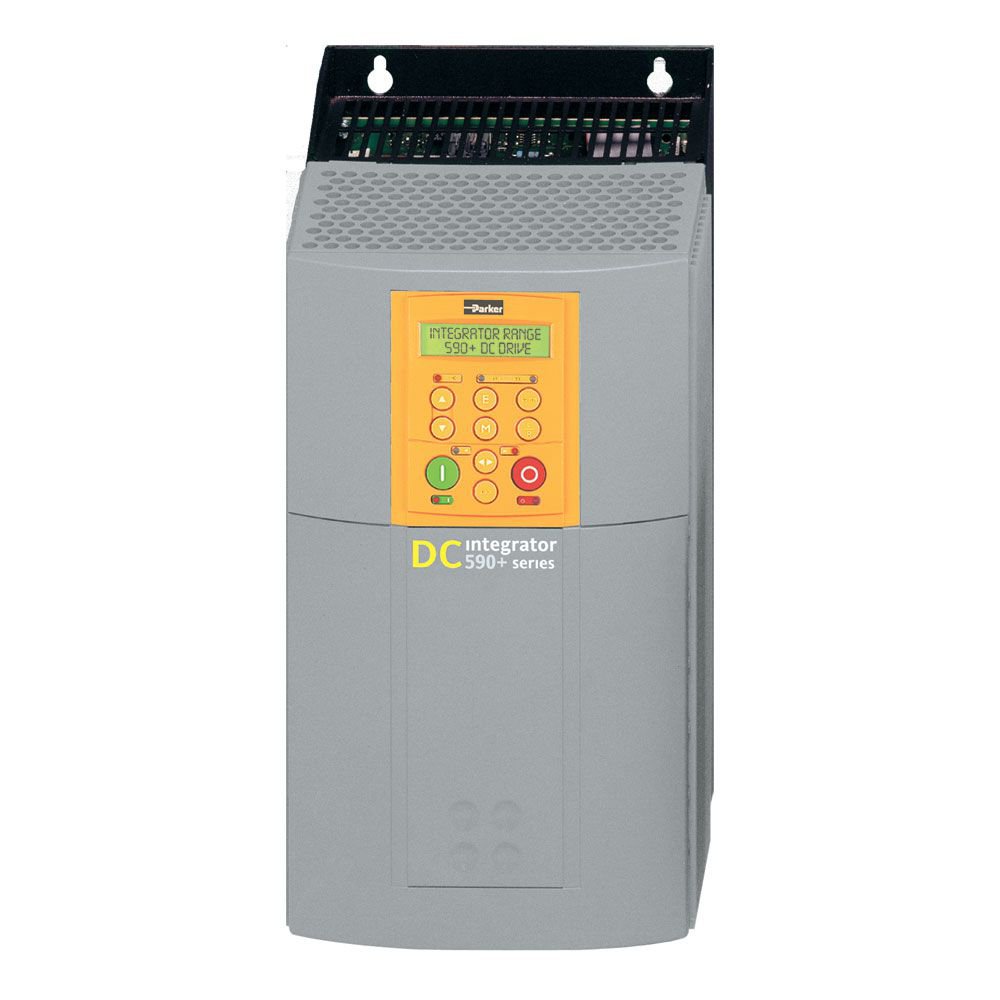

DC590+ Series

DC Motor Speed Controller

The advanced DC590+ series 4-quadrant variable speed DC drives offer current ratings of up to 2700A, Function Block programming, configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications.

The Integrator series is a single family of both AC drives (AC690+) and DC drives (DC590+) that provides the benefits of common programming, set-up and communication across both technologies. The DC590+ Integrator series highly advanced DC drive meets the demands of the most complex motor control applications. Extensive application software (including winder control as standard) together with Function Block Programming and configurable I/O creates a total drive system in a single module.

    Markets:
  • • Plastic Processing
  • • Primary Metal Refining/Process
  • • Miscellaneous Processing
  • • Converting
  • • Pulp & Paper
  • • Rubber & Tire Processing
  • • Wire & Cable Processing
  • • Factory Automation

    Features/Benefits:
  • • Extremely simple set-up and programming
  • • Extremely Compact
  • • Removable Key Pad
  • • Motor Thermistor Input
  • • 598+ and 599+ Stack Controller configuration available for retrofit of existing power stacks

    • Macro Function Blocks:
  • • Open-loop winder control
  • • Winder control - loadcell/dancer
  • • Section control
  • • Math functions
  • • Embedded controller functions

    Applications:
  • • Converting Machinery
  • • Plastics processing Machinery
  • • Wire & Cable Machinery
  • • Automotive Test Stands
  • • Extruders & Mixers
  • • Winders

Technical Specifications:

    Power Supply:
  • Three Phase
  • 110-220VAC ± 10 %, 50-60 Hz ± 5%
  • 220-500VAC ± 10 %, 50-60 Hz ± 5%
  • 500-690VAC ± 10 %, 50-60 Hz ± 5%

    Output Armature Current Ratings:
  • 15 - 2700A (15 - 165A for DRV Versions)

    Protection:
  • IP00 / IP20 on frame size 1 (15-35A) drives only [Europe]
  • UL Open Type [North America/Canada]

    Speed Feedback:
  • - Armature Voltage Feedback
    - Tach Generator
    - Encoder

    Inputs/Outputs:
  • Analog: 5 inputs / 3 outputs
  • Digital: 9 inputs / 3 outputs

    Reference Supplies:
  • - 1x -+10VDC
    - 1x -10VDC
    - 1x +24VDC

    Power Bridge:
  • 590+ - 4 Quadrant Regenerative : Dual Three Phase SCR bridges
  • 591+ - 2 Quadrant Non-Regenerative : Single SCR bridge
  • Variable Field Control with SCR's

    Drive Protection:
  • - High energy MOV’s
    - Heatsink overtemperature
    - Instantaneous overcurrent
  • - Thyristor trigger failure
    - Inverse time overcurrent
    - Interline snubber network
  • - Field Failure
    - Zero speed detection
    - Speed feedback failure
    - Stall protection
  • - Motor overtemperature
    - Stall protection
BRAND Parker
PRODUCT TYPE DC Drive
DRIVE FORMAT Single Axis Technology
SERIES DC590
INPUT SUPPLY VOLTAGE 3*230VAC
3*380-480VAC
3*500-690VAC
OUTPUT RATING (HP) 0.8 - 900KW
SUPPORTED MOTOR TYPES DC Brushed Servo
SUPPORTED FEEDBACK DEVICE Armature Voltage
Tachometer
Encoder
MODES OF CONTROL Non-Regenerative
Stack Controller
COMMUNICATION INTERFACE RS232 / RS485
CANopen
ControlNet
DeviceNet
Profibus
Ethernet TCP/IP
Link Communications
Modbus
OPERATING TEMPERATURE (C) 0 - 45C (15-165A) / derate up to 55C max
0 - 35C (180-270A) / derate up to 55C max
0 - 40C (380-1950A) / derate up to 55C max
OPERATING TEMPERATURE (F) 32 - 113F (15-165A) / derate up to 131F max
32 - 95F (180-270A / derate up to 131F max
32 - 104F (380-1950A) / derate up to 131F max
OPERATING ALTITUDE Up to 500m ASL (derate > 500m)
OVERLOAD RATINGS 150% for 30s
200% for 10s
CERTIFICATES CE (EMC & LVD)
Overvoltage Category III
Pollution Degree II
UL Listed
cUL Listed
