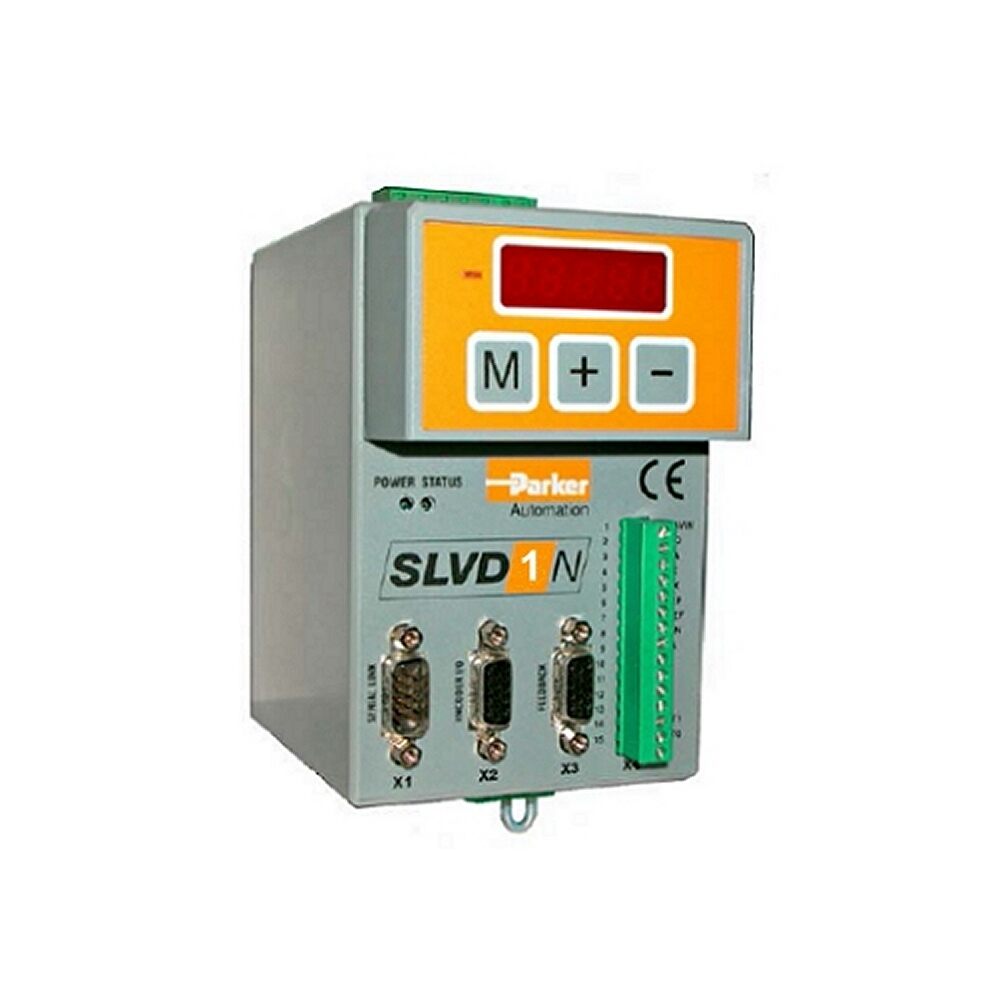

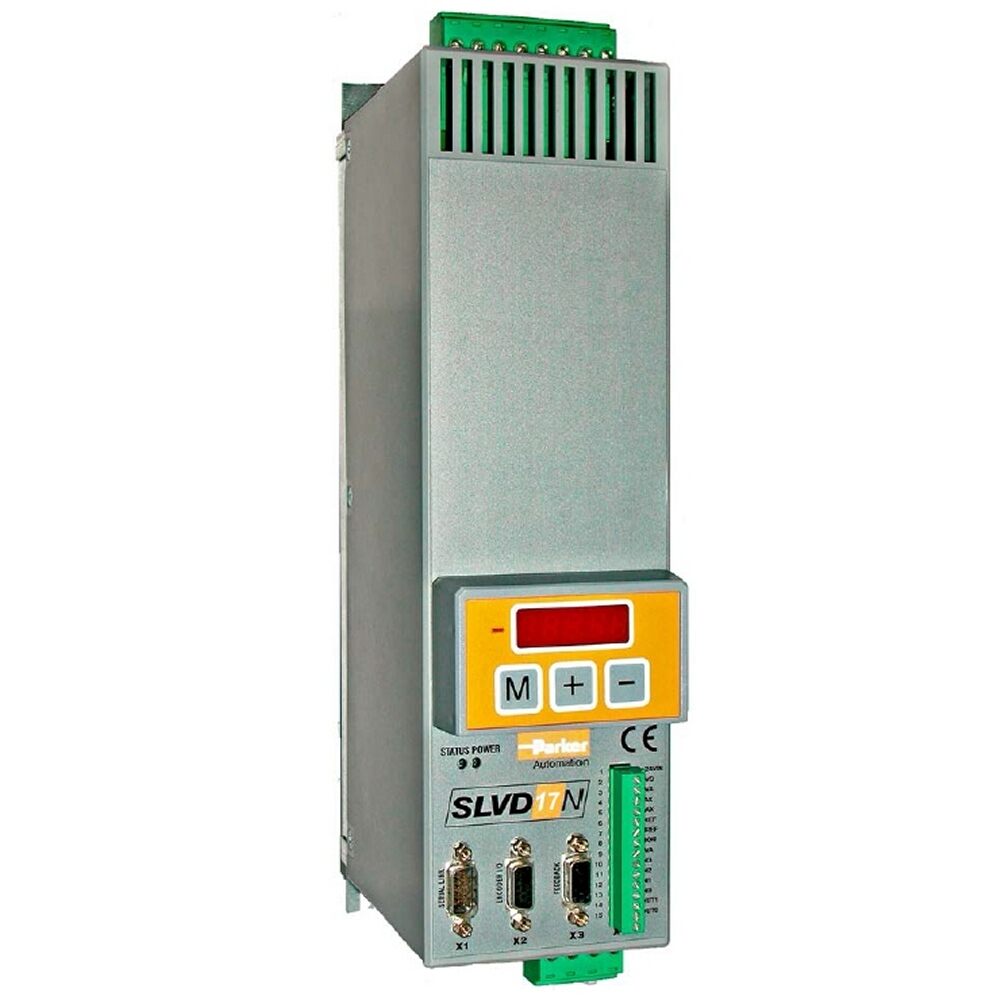

SLVD-N Series

Compact, Low-Power, Single-Axis Servo Drive/Controller

SLVD-N compact stand-alone servo drives have power ratings of 0.95kVA; 1.6kVA; 2.3kVA; 3kVA; 5.25kVA; 6.5kVA and offer positioner functions, including a profile generator, electronic cams, spindle orientation and torque limited control, plus they accept industry standard command signals.

SLVD-N is a family of compact digital servo drives for brushless motors which, in addition to positioning applications with trapezoidal profile, electrical shaft, electronic cam, spindle orientation, simulator of stepper motor and torque control, holds a PLC inside able to talk to the most common industrial programming systems, giving a great freedom of use of the inputs and outputs. It also allows the development of additional configurations to the basis features of the drive, such as gains adjustment of the loop in relation to speed or space, torque monitoring used for tools etc.

The SLVD-N range of servo controllers are available with output power ratings up to 6.5kVA and come equipped with an RS422/RS485 serial interface allowing the operator to configure, monitor and command to up to 32 units simultaneously. A CANbus interface is also available, both in communication mode and in real time mode with SBCCAN/DS301/DS402 protocols, plus there are interface options for EtherCAT and ProfiNet fieldbus communications.

    Markets:
  • • Factory Automation
  • • Packaging Machinery
  • • Miscellaneous Manufacturing

    Features/Benefits:
  • • Safety: STO function optional
  • • CE + UL/cUL Listed
  • • Internal PLC : PicoPLC (standard) / programming according to IEC61131 (optional)
  • • Configuration Software : MotionWiz with Oscilloscope function, real time and debugging features

    Applications:
  • • Packaging Machines
  • • Pick & Place Systems
  • • General Purpose Machines

    Technical Specifications:
  • • Power Output Rating: 0.95kVA; 1.6kVA; 2.3kVA; 3kVA; 5.25kVA; 6.5kVA
  • • Communications : RS422/485, CANopen (standard) / EtherCAT (optional) / ProfiNet (optional)
  • • Operating Modes :
  • - torque / - speed / - position / - electronic gear / - electronic cam / - virtual master / - CANopen
  • • 4 Digital Inputs / 2 Digital Outputs / 1 Analog Input / 1 Analog Output
  • • 1 Auxiliary Encoder Input / 1 Auxiliary Encoder Output
  • • Internal Braking Resistor
  • • Internal EMC Filter for three phase power supply
BRAND Parker
PRODUCT TYPE Servo Drive
DRIVE FORMAT Single Axis Technology
SERIES SLVD-N
INPUT SUPPLY 1*230VAC
3*230VAC
CONTINUOUS OUTPUT CURRENT RATING 1.25A
2.5A
5A
7A
10A
15A
17A
SUPPORTED MOTOR TYPES Brushless Servo
Direct Drive Servo
Torque (for 15A and 17A versions only)
SUPPORTED FEEDBACK DEVICE Resolver
Incremental Encoder
EnDat Absolute Encoder
Hiperface Absolute Encoder
MODES OF CONTROL Programmable Control - IEC 61131
Programmable Control - Proprietary Language
Electronic Gearing
Electronic CAM
Position Control (External Command)
Velocity Control (External Command)
Torque Control (External Command)
Analog Command Input
Step/Direction Command Input
COMMUNICATION INTERFACE RS232 / RS485
CANopen
DeviceNet
Profibus
Profinet
Ethernet TCP/IP
EtherCAT
OPERATING TEMPERATURE (C) 0 - 45
OPERATING TEMPERATURE (F) 32 - 113
OPERATING TEMPERATURE (F) CE (EMC & LVD)
UL Listed
cUL Listed
RoHS Compliance
