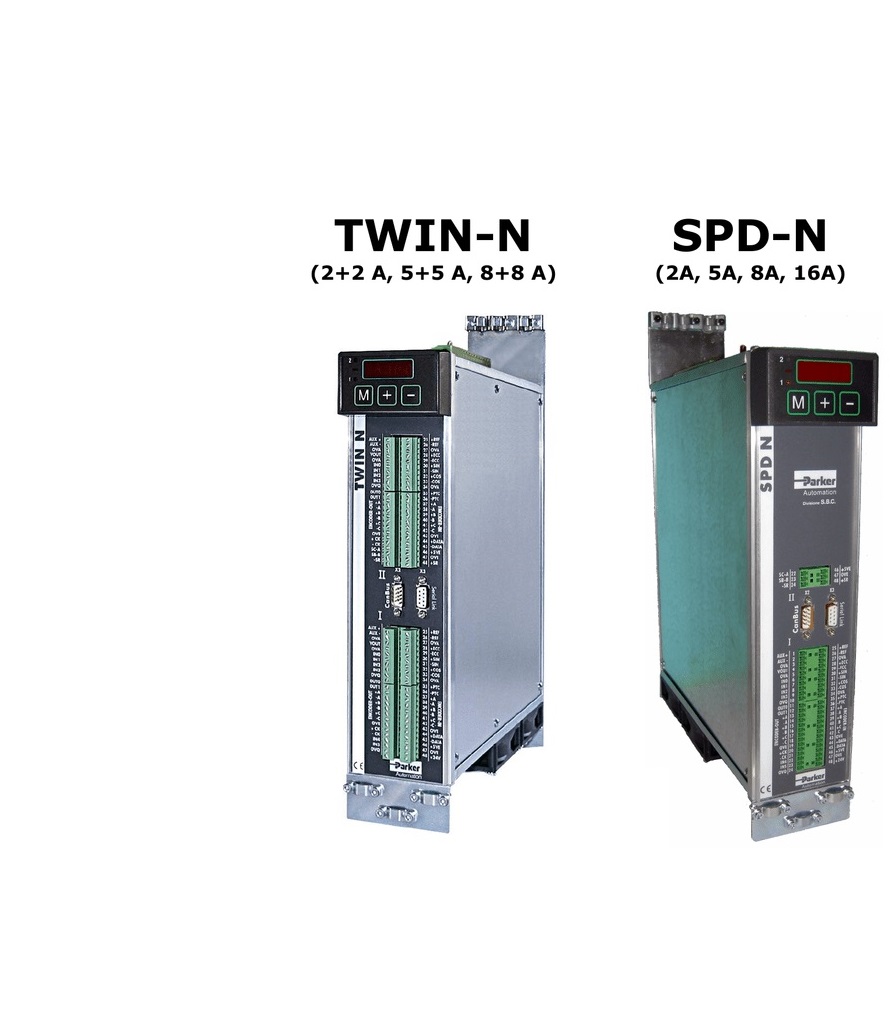

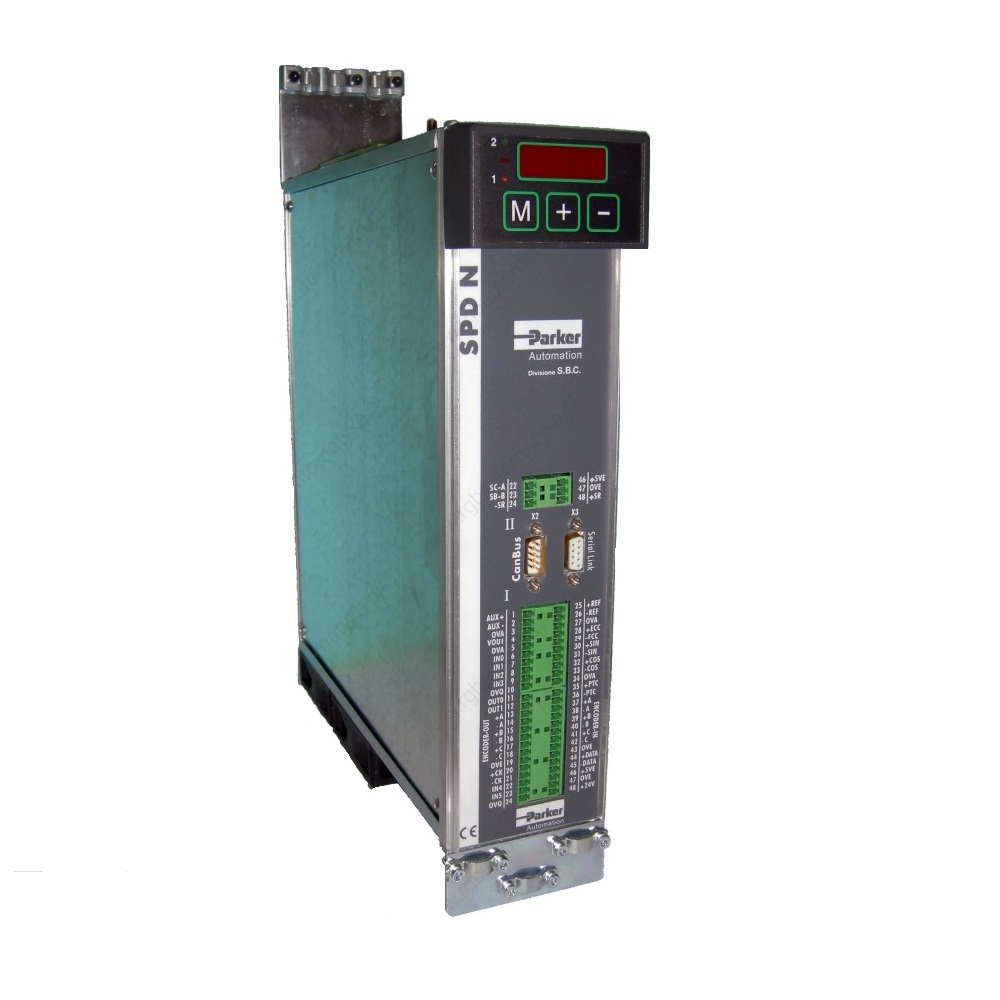

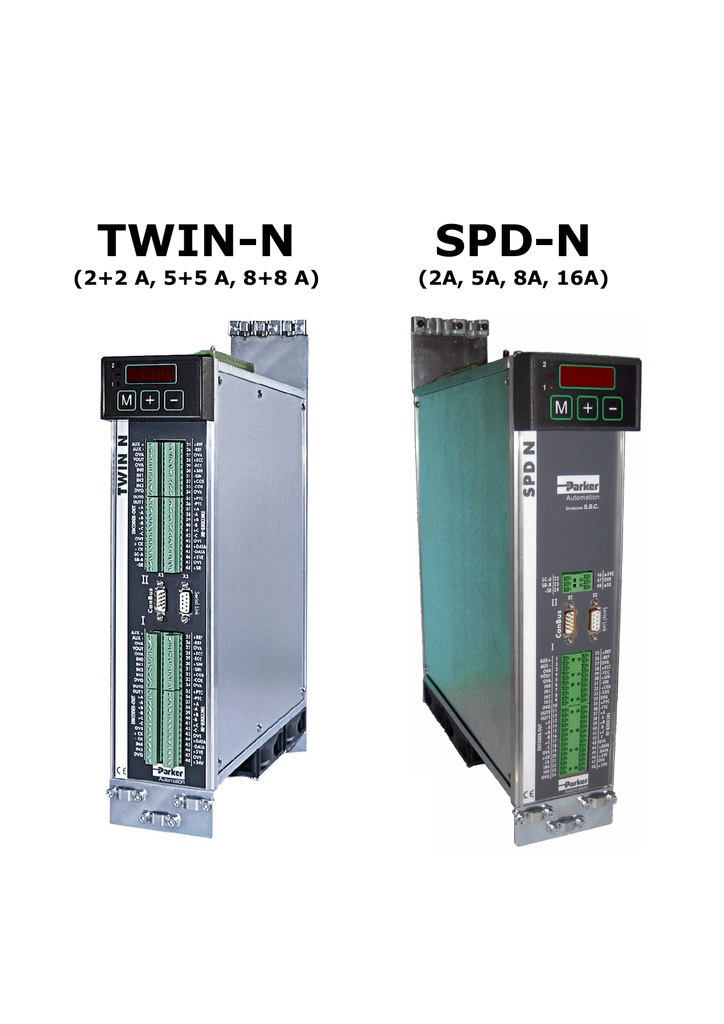

SPD-N Series
SPD-N servo drives have power ratings of 1.4kVA; 3.5kVA; 5.6kVA; 11.2kVA and are designed for market sectors such as packaging, pick & place, tobacco machines, automatic stores and automatic machinery in general where rapid acceleration/deceleration is required.
SPD-N is a series of fully-digital, compact and high performance servo drives. The SPD-N drives are designed for single/three phase 230VAC or 380-480VAC three-phase input supplies and have output ratings of 2A, 1.4kVA; 5A, 3.5kVA; 8A. 5.6kVA, 16A, 11.2kVA. SPD-N drives are designed for market sectors such as packaging, pick & place, tobacco machines, automatic stores, and automatic machinery in general, where rapid acceleration and deceleration are critical application factors.
-
Markets:
- • Miscellaneous Industrial
- • Miscellaneous Manufacturing
-
Features/Benefits:
- • Power Output Rating : 1.4kVA; 3.5kVA; 5.6kVA; 11.2kVA
- • Continuous Output Current : 2A; 5A; 8A; 16A
- • CANopen (CANOpen DS301 or DSP402)
- • CE certification, UL cUL (optional) certification
-
Applications:
- • Packaging Machines
- • Pick and Place Systems
- • General Purpose Machines
| BRAND | Parker |
| PRODUCT TYPE | Servo Drive |
| DRIVE FORMAT | Single Axis Technology |
| SERIES | SPD-N |
| INPUT SUPPLY VOLTAGE |
1/3*230VAC
3*400/480VAC |
| CONTINUOUS OUTPUT CURRENT RATING |
2A
5A 8A 16A |
| SUPPORTED MOTOR TYPES | Brushless Servo |
| SUPPORTED FEEDBACK DEVICE |
Resolver
Incremental Encoder Hiperface Absolute Encoder |
| MODES OF CONTROL |
Programmable Control - Proprietary Language
Position Control (External Command) Velocity Control (External Command) Torque Control (External Command) Analog Command Input Step/Direction Command Input |
| COMMUNICATION INTERFACE |
RS232 / RS485
CANopen EtherCAT |
| OPERATING TEMPERATURE (C) | 0 - 45 |
| OPERATING TEMPERATURE (F) | 32 - 113 |
| CERTIFICATES |
CE (EMC & LVD)
UL Listed cUL Listed RoHS Compliance |
