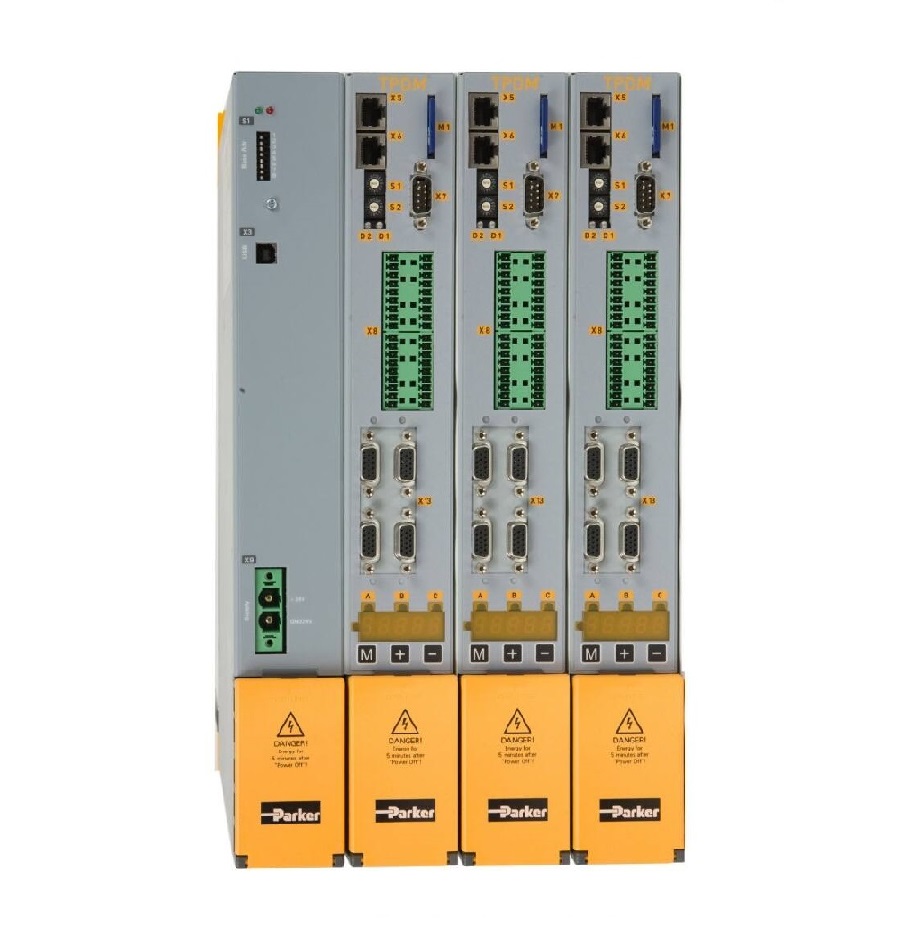

TPD-M is a space-saving multi-axis servo drive system where each drive module can control up to three servo motors. The system configuration consists of a common DC bus power supply and multiple TPD-M drive modules, connected through DC bus bars. The drive modules are available as one, two or three axis versions, with output power ratings of up to 20kVA, making the system very flexible.

TPD-M has been developed for all applications where multiple drives are normally used and gives both OEMs and end users the opportunity to reduce build, configuration and operating costs, while boosting productivity and profitability. Motion control functionality is performed by means of EtherCAT Real Time CoE (CAN over Ethernet) communication, CAN / CANopen DS402 communication. TPD-M drives can also control induction motors with feedback or sensorless in V/f mode.

Markets:
• • Factory Automation
• • Machine Tools
• • Packaging Machinery

Features/Benefits:
• • Common DC bus connection for energy exchange between drives
• • Hiperface DSL feedback® with reduced cabling  - only one cable connection between drive & motor
• • Removable SD card
• • Safety Technology (STO)
• • CE + UL/cUL Listed

Applications:
• • Material forming machines
• • Textile machines
• • Paper and converting lines
• • Plastics machines

Technical Specifications:
Single-Axis:
• • Power Output Rating : 6.6kVA
• • Continuous Output Current : 10A
Twin-Axis:
• • Power Output Rating : 2* 3.3kVA
• • Continuous Output Current : 5A + 5A
Triple-Axis:
• • Power Output Rating : 1* 5.3kVA + 2* 3.3kVA
• • Continuous Output Current : 8A + 5A + 5A
• • PSU Input Supply : 3*230-480VAC
• • Drive Input Supply : 325...680 VDC
• • Supported Feedback Types : Resolver, Hiperface + EnDat Interface, Hall Sensors, Rotary and Linear Encoders
• • Programming : PicoPLC
• • 4 Digital Inputs / 2 Digital Outputs / 1 Analog Input / 1 Analog Output (per axis)
• • 1 Auxiliary Encoder Input / 1 Auxiliary Encoder Output (per axis)
