TK Series

Frameless Direct-Drive Torque Motors

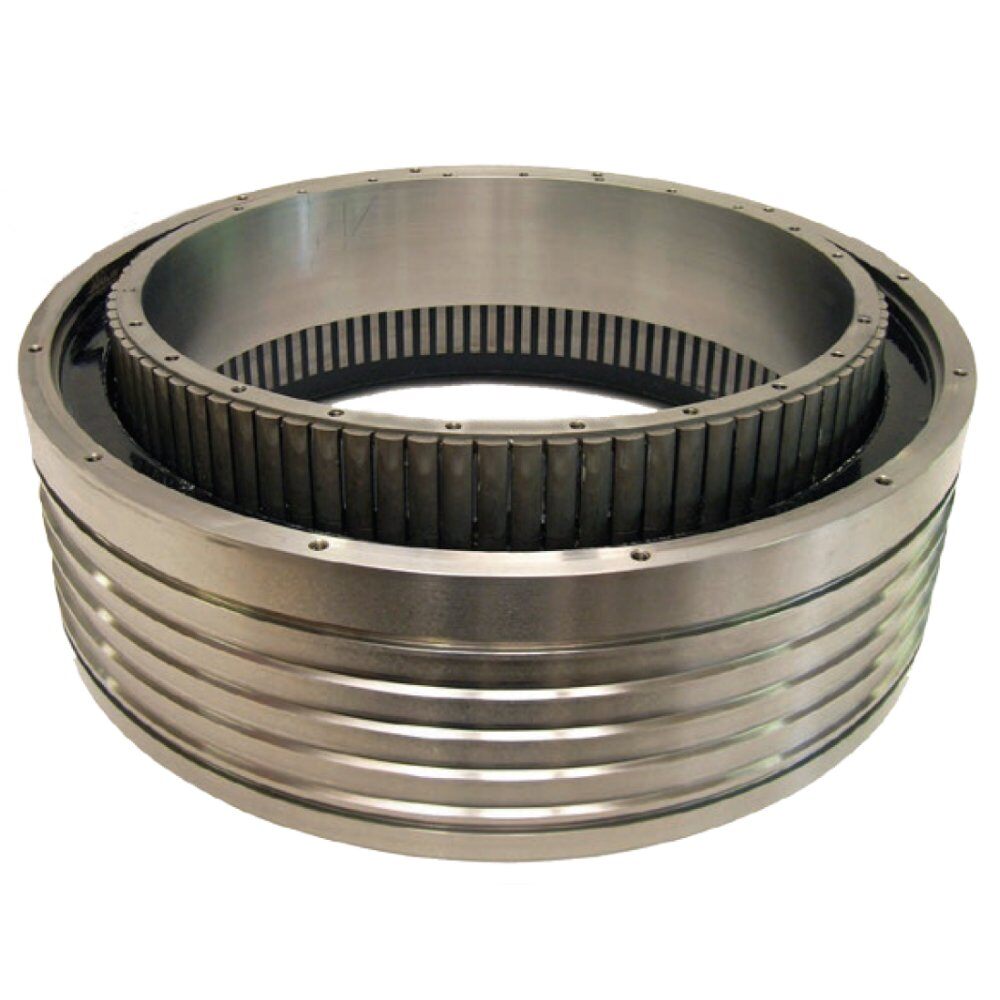

TK-Series frameless direct-drive torque motor kits offer high torques at low speed and come as a separate rotor and stator, permitting direct system integration.
With 400VAC windings, torques up to 21700Nm, power ratings to 207kW and speeds to 2500 min-1.

Delivered as separate rotor and stator components, for integration into the mechanical structure of the machine, TK series torque motors lead to simplified designs, reduced costs, and increased accuracy.
TK series is distinguished from existing solutions by their exceptional robustness, making them particularly suited to harsh environments. Benefiting from Parker's unprecedented know-how in the design and manufacture of torque motors, TK series can also be delivered as complete sub-assemblies including frame, cooling system, bearings, feedback sensor.


Markets:
• Machine Tools
• Miscellaneous Industrial
• Miscellaneous Processing

Features/Benefits:
• Permanent magnet synchronous servo motor kit
• Simplified mechanical designs
• High Resistance (oil proof and coating on request)
• Reduced sizes and weights
• Increased reliability and reduced maintenance
• Increased rigidity and accuracy

Applications:
• Rotating Table
• Material Forming
• Material Handling
• Tooling Machines
• Mixer for Pulp & Paper
• Winch

Technical Specifications:
• Mounting - tapped holes on rotor and stator periphery
• Cooling - water cooling (standard) or natural convection (available with derating, consult us)
• Thermal Protection - PTC and KTY probes fitted into the stator winding
• Feedback Sensor - chosen depending upon mechanical conditions, required accuracy and drive specifics: resolver, sin/cos encoder...
• Electrical Connections - flying cables without connectors, 2m length
FRAME SIZE 230mm
385mm
565mm
795mm
CONTINUOUS POWER RANGE 6.9 ... 207kW (water cooled)
CONTINUOUS TORQUE (NM) 90 ... 21700 (water cooled)
CONTINUOUS TORQUE (IN-LBS) 796 ... 192061 (water cooled)
PEAK TORQUE (NM) 200 ... 39600 (water cooled)
PEAK TORQUE (IN-LBS) 1770 ... 350489 (water cooled)
RATED SPEED (RPM) 29 ... 2500
INPUT SUPPLY VOLTAGE 400-480VAC
MOTOR POLE COUNT 30
60
90
120
FEEDBACK DEVICE Without Sensor
Direct EnDat Encoder
PARKER DRIVE COMPATIBILITY AC890SD
CERTIFICATES CE marked
IP RATING IP00
HOLDING BRAKE No
COOLING METHOD Water Cooled (standard)
Air-Cooled / Natural Convection (with derating)
SHAFT TYPE Hollow Shaft (ID: 132 - 620mm)
