NK Series

Frameless Low Cogging Servo Motors

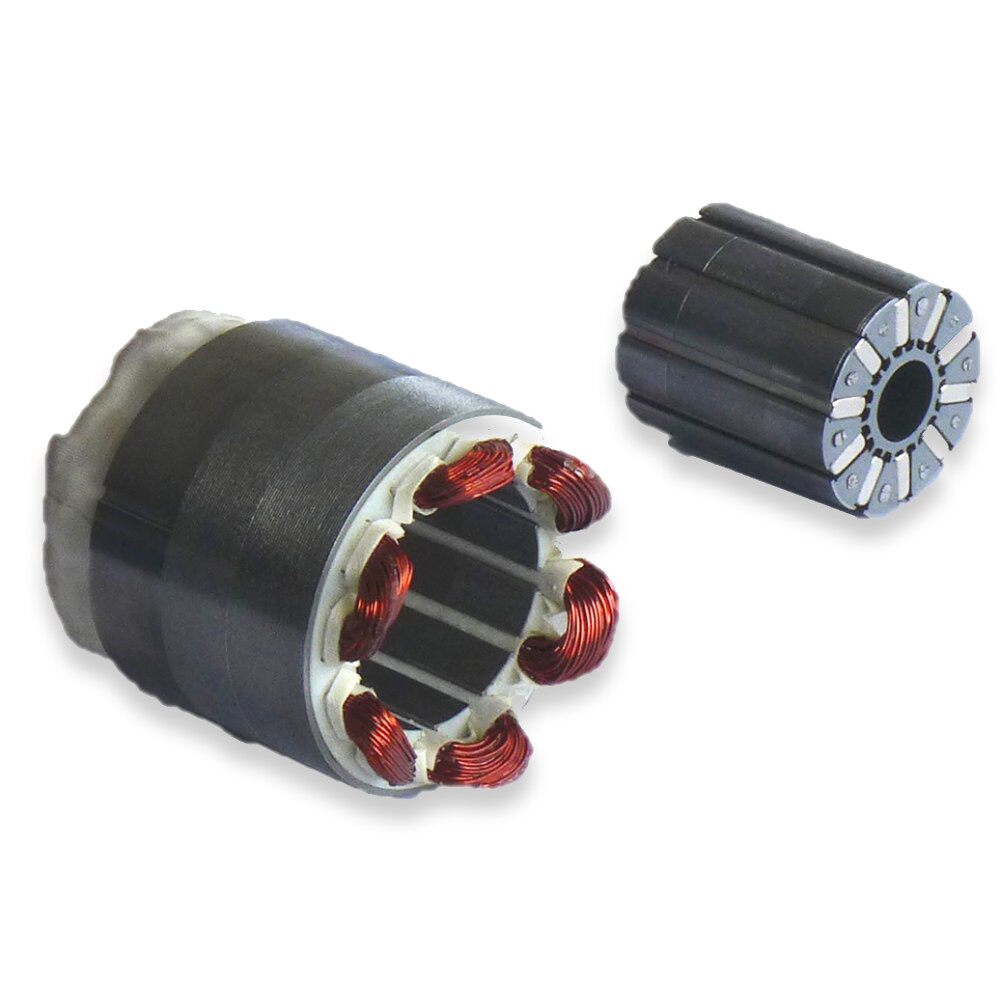

NK-Series frameless servo motor kits are innovative and optimized, enabling the complete integration of a low-cogging direct drive servo motor within a mechanical system.
Available with 230/400VAC windings, power ratings to 34kW and speeds to 15000 min-1.

The NK servo motor kit is an innovative and comprehensive approach enabling the complete integration of the motor in a simplified mechanical system. This approach ensures that the size constraints of the machine are utilized to maximum effect. This delivers a more accurate, reliable and robust solution than traditional construction methods.
A complete range of products is available to meet the design needs of many different mechanical systems in a host of different applications. Other more bespoke adaptations can be developed upon request.


Markets:
• Machine Tools
• Packaging Machinery
• Medical
• Other Life Sciences
• Marine & Submarine

Features/Benefits:
• Permanent magnet synchronous servo motor kit
• Compact footprint and reduced weight of the mechanical systems
• Reduced cost
• Direct Drive: accurate and robust mechanics
• Complete and optimized solution including sensor, cooling system and drive
• Integration assistance

Applications:
• Tooling Machines
• Special Machines
• Electric Cylinders
• Pump
• Compresssor
• Winch
FRAME SIZE 42mm
56mm
62mm
80mm
110mm
143mm
CONTINUOUS POWER RANGE 0.2 ... 7.5 kW (air cooled)
3,8 ... 34 kW (water cooled)
CONTINUOUS TORQUE (NM) 0.4 ... 41 (air cooled)
3.1 … 90 (water cooled)
CONTINUOUS TORQUE (IN-LBS) 3.5 ... 362 (air cooled)
27 … 796 (water cooled)
PEAK TORQUE (NM) 1.7 ... 137 (air cooled)
6.6 ... 137 (water cooled)
PEAK TORQUE (IN-LBS) 15 ... 1212 (air cooled)
58.4 ... 1212 (water cooled)
RATED SPEED (RPM) 1000 ... 8000 (air cooled)
2000 ... 15000 (water cooled)
INPUT SUPPLY VOLTAGE 230VAC
400-480VAC
MOTOR POLE COUNT 10
FEEDBACK DEVICE Resolver
Absolute Encoder (EnDat, Hiperface)
Without Sensor
PARKER DRIVE COMPATIBILITY PSD
Compax3
AC890SD
AC650S
AC30V
CERTIFICATES CE marked
IP RATING IP00
HOLDING BRAKE Optional
COOLING METHOD Air-Cooled / Natural Convection (standard)
Water Cooled (on request, NK3-8)
SHAFT TYPE Hollow Shaft (ID: 9 - 40mm)
