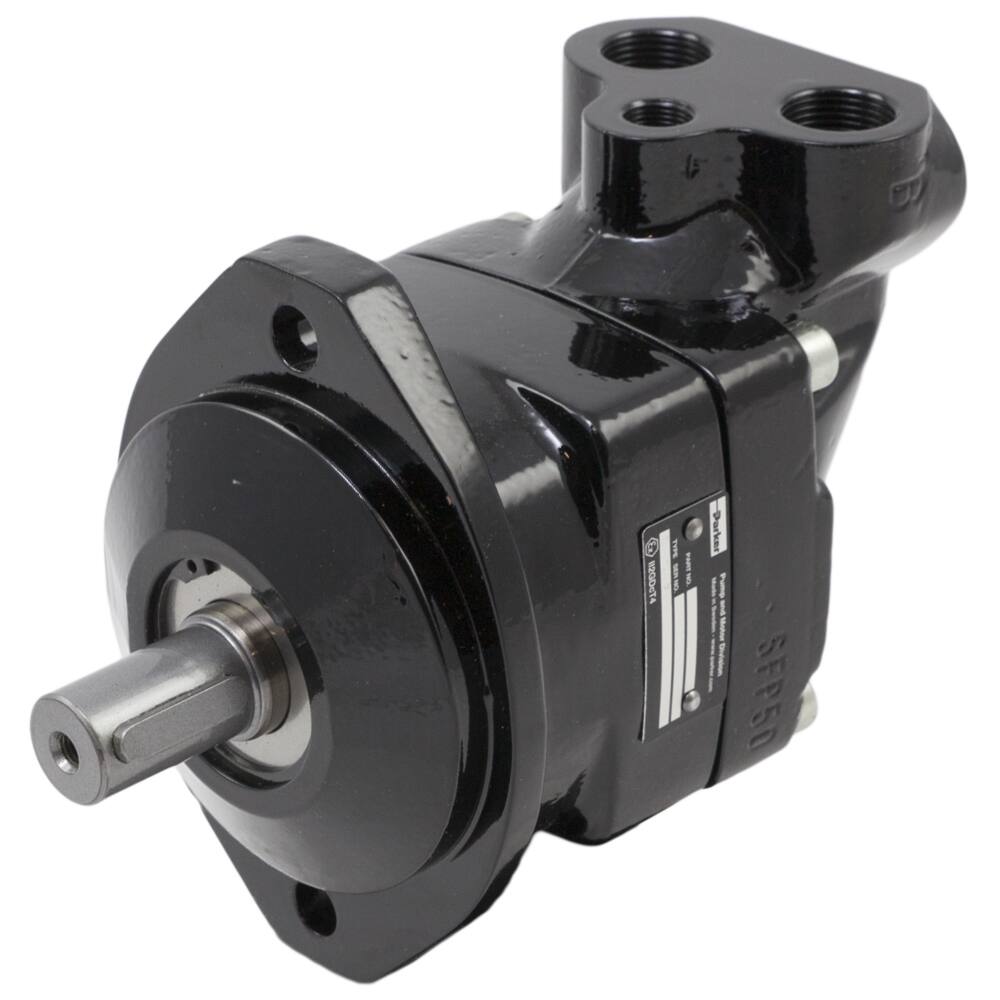

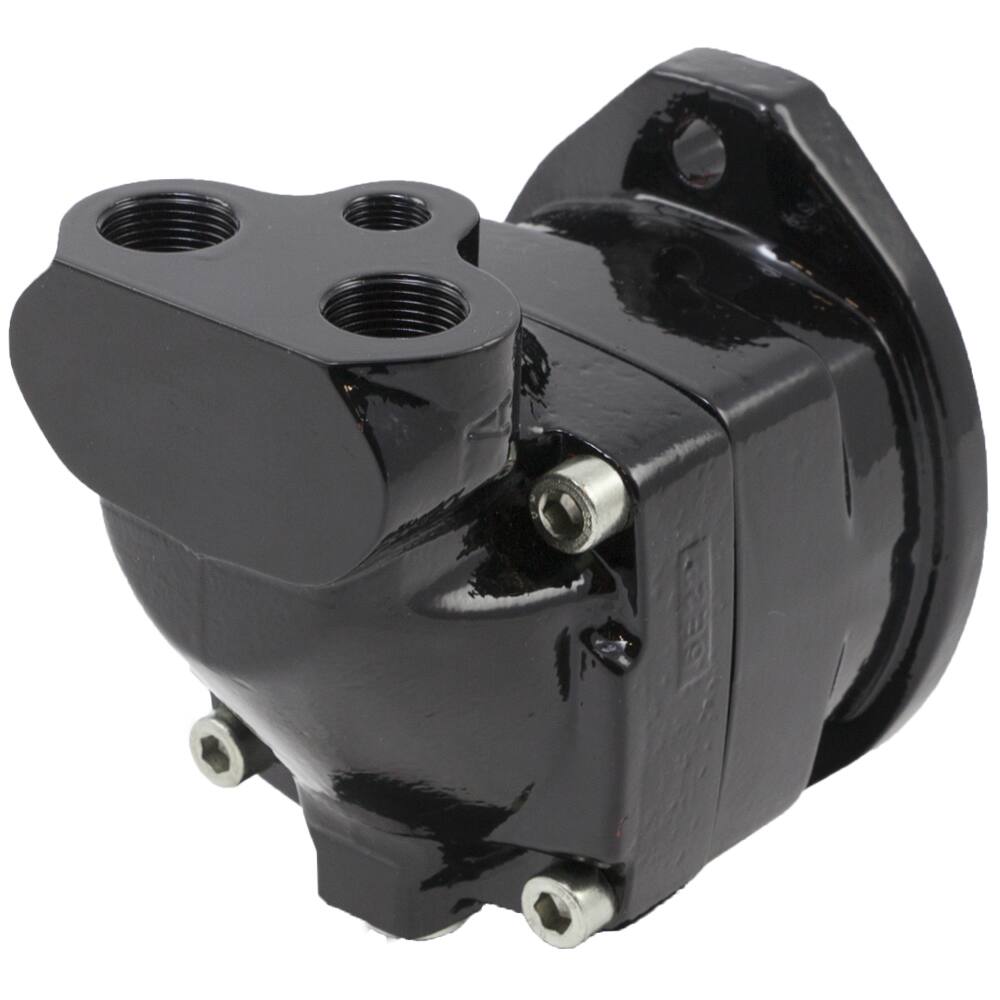

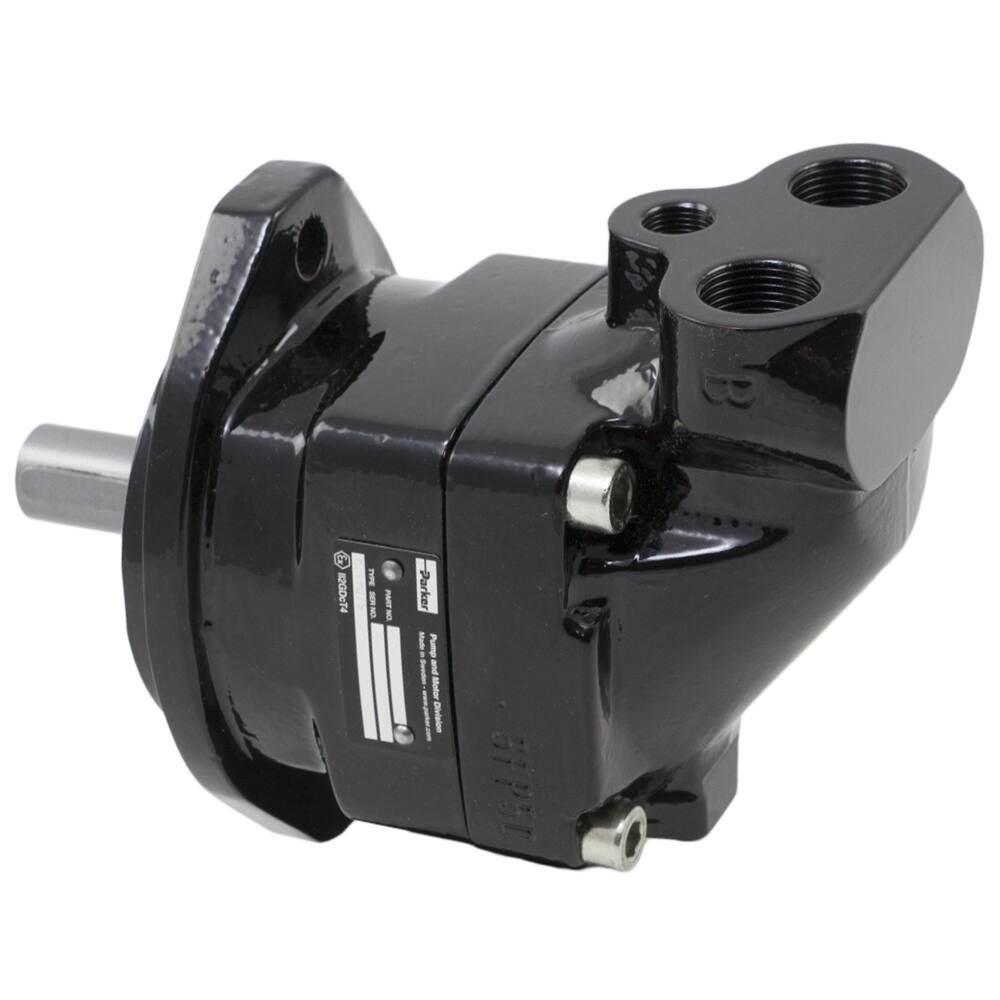

F11 Series

Axial Piston Fixed Motors, Small Frame Series

Parker F11 Hydraulic Motor series has operating pressures up to 420 bar (6,100 psi) and speeds up to 14.000 rpm.
The F11 motor is a robust design motor, and can be used in numerous applications in both open and closed loop circuits. Sizes from 5-19cc.

The High Efficient Parker Bent Axis design motors, with unique spherical piston concept gives thermal shock resistance. The motors are rated up to 420bar pressure levels, and speeds up to 14000rpm. The well proven gear synchronization and double tapered bearing concept gives a very robust and reliable motor in demanding applications, applicable for both open and closed loop systems.  Combined with our well proven track record of durable motors, we have an outstanding uptime. Sizes from 5-19cc

Rigorous product testing and continuous product development help to ensure our hydraulic motors operate at optimum efficiency and can perform in the most demanding environments.


Markets:
• Industrial
• Energy
• Government (Non Aerospace)
• HVAC
• Mobile
• Natural Resources
• Transportation (Non Aerospace)

Features/Benefits:
• Displacement from 5-19 cc – support various applications.
• Gear synchronization – robust and reliable
• High overall efficiency – reducing greenhouse gas emissions and fuel consumption.
• Low noise level – meeting industry noise emissions.
• Low weight – reducing greenhouse gas emissions and fuel consumption.
• Laminated piston rings –- low internal leakage, high overall efficiency
• High speed capability – suitable for a variety of applications
• Operating pressures up to 420 bar
• Shaft end and mounting flange meet ISO, SAE and CETOP standards.
• Small installation dimensions – fits wide range of applications.
• Tolerates low and high temperature shocks –- suitable for the most demanding environments.

Applications:
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational & Municipal Equipment
• Other Mobile
• Mining
• Oil & Gas
• Power Generation
• Defense
• Marine (Non – Military)
• Air Conditioning
• Heating
• Machine Tools
• Aerial
• Rail

* Made in Sweden
BODY MATERIAL Cast Iron
CASE DRAIN OPTION YES
CHARGE PUMP OPTION NO
CIRCUIT TYPE OPEN
CONFIGURATION Single
CONTROL METHOD NO
ENERGY RECOVERY CAPABLE YES
FILTRATION OPTION NO
FLUID TYPE Standard Hydraulic Fluid
MAXIMUM DISPLACEMENT (CM3/REV) 19 (cm3/rev)
MAXIMUM DISPLACEMENT (IN3/REV) 1.16
MAXIMUM FLOW (GPM) 17.56
MAXIMUM FLOW (LPM) 66,5 lpm
MAXIMUM FLUID TEMPERATURE (C) 115 degrees
MAXIMUM FLUID TEMPERATURE (F) 239
MINIMUM FLUID TEMPERATURE (C) -40º
MINIMUM FLUID TEMPERATURE (F) -40º
MAXIMUM NOISE LEVEL (DBA) 80 dBA
MAXIMUM OPERATING PRESSURE (BAR) 420 bar
MAXIMUM OPERATING PRESSURE (PSI) 6090
MAXIMUM RADIAL SHAFT LOAD (KG) 400 kg
MAXIMUM RADIAL SHAFT LOAD (LBS) 880
MAXIMUM SPEED (RPM) 4600 rpm
MAXIMUM VISCOSITY (SUS) 1000 cSt
4664 SUS
MINIMUM VISCOSITY (SUS) 8 cSt
37.3 SUS
MAXIMUM WEIGHT (KG) 11 kg
MAXIMUM WEIGHT (LBS) 24.2
MEDIA HYDRAULIC
MOUNTING OPTION SAE
ISO
CETOP
CARTRIDGE
PORT CONNECTION SAE
ISO
BSPP
PORT CONNECTION TYPE STRAIGHT THREADED
PORTING LOCATION Rear Ports
PUMP TECHNOLOGY PISTON
PUMP TYPE Fixed
ROTATION Clockwise
Counter Clockwise
Bi-Rotational
SENSOR TYPE Speed
Rotation
SHAFT TYPE SAE
ISO
THRU-DRIVE CAPABILITY NO
