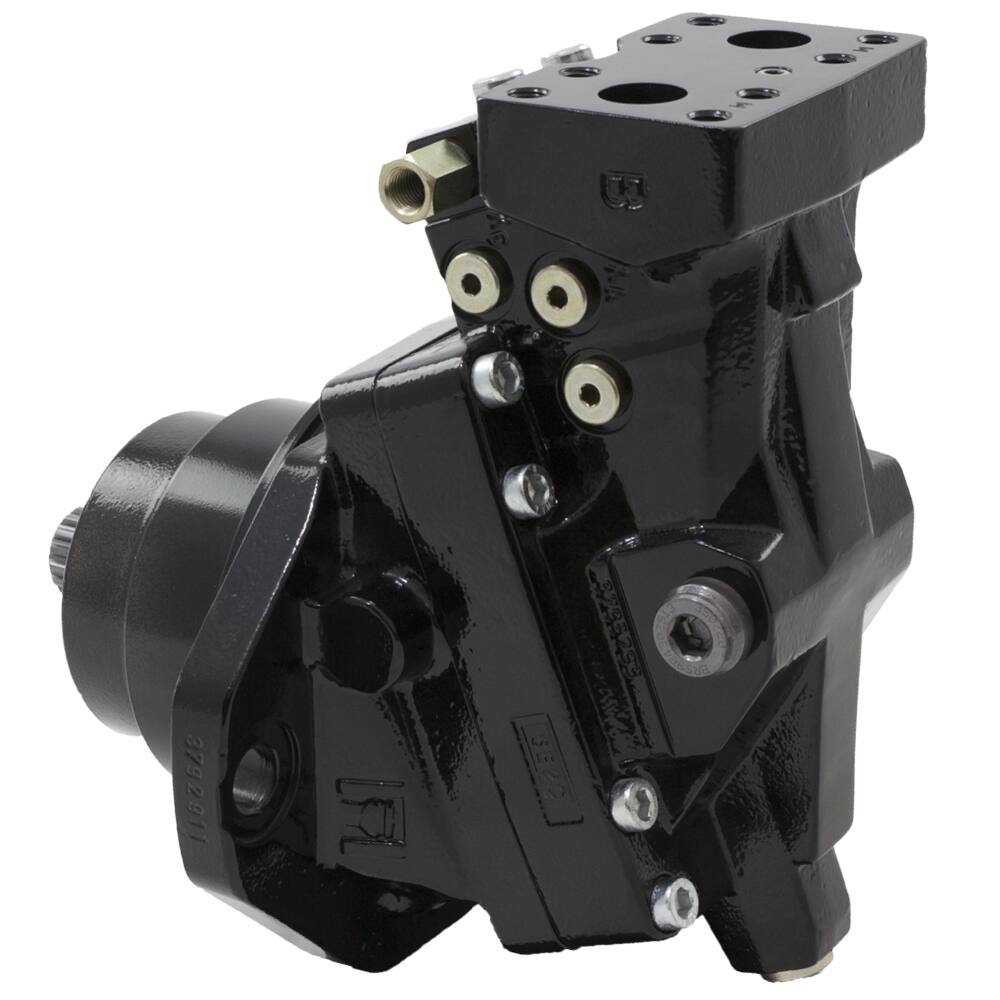

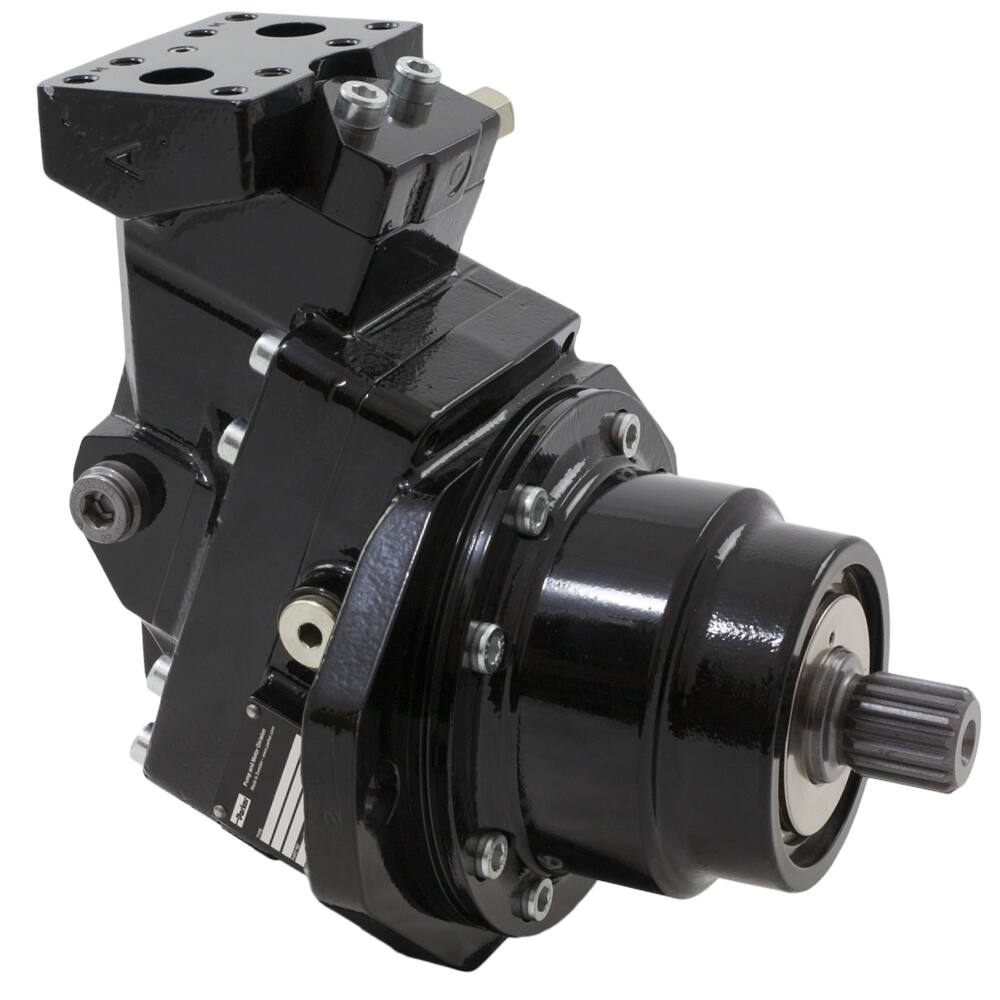

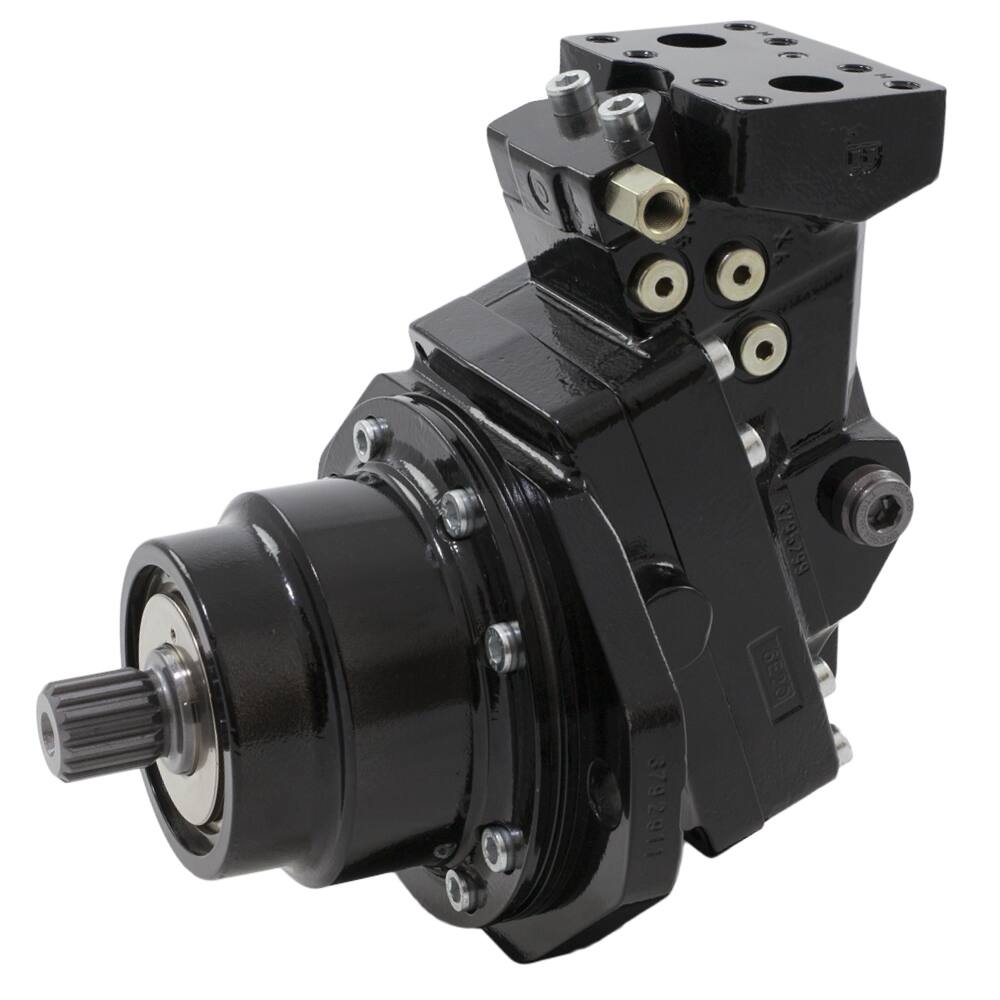

The T12 is a cartridge motor based on the well proven V12 series. The specially designed end cap with dual ports permits a very short installation. A simple setting device moves the cylinder barrel to the maximum or minimum displacement position. The setting is controlled by an external hydraulic pilot signal. Max speed ratio is 3.33:1.

Rigorous product testing and continuous product development help to ensure our hydraulic motors operate at optimum efficiency and can perform in the most demanding environments.

Markets:
• Mobile
• Natural Resources
• Government

Features/Benefits:
• Displacement 60 cc
• High operating speeds thanks to low weight pistons
• High overall efficiency throughout the entire displacement range
• The 9-piston design provides high start-up torque and smooth operation
• Small envelop size and a high power-to-weight ratio
• Low noise levels due to a very compact and sturdy design with smooth fluid passages
• Long service life and proven reliability

Applications:
• Construction Equipment
• Mining
• Oil & Gas
• Defense

* Made in Sweden
