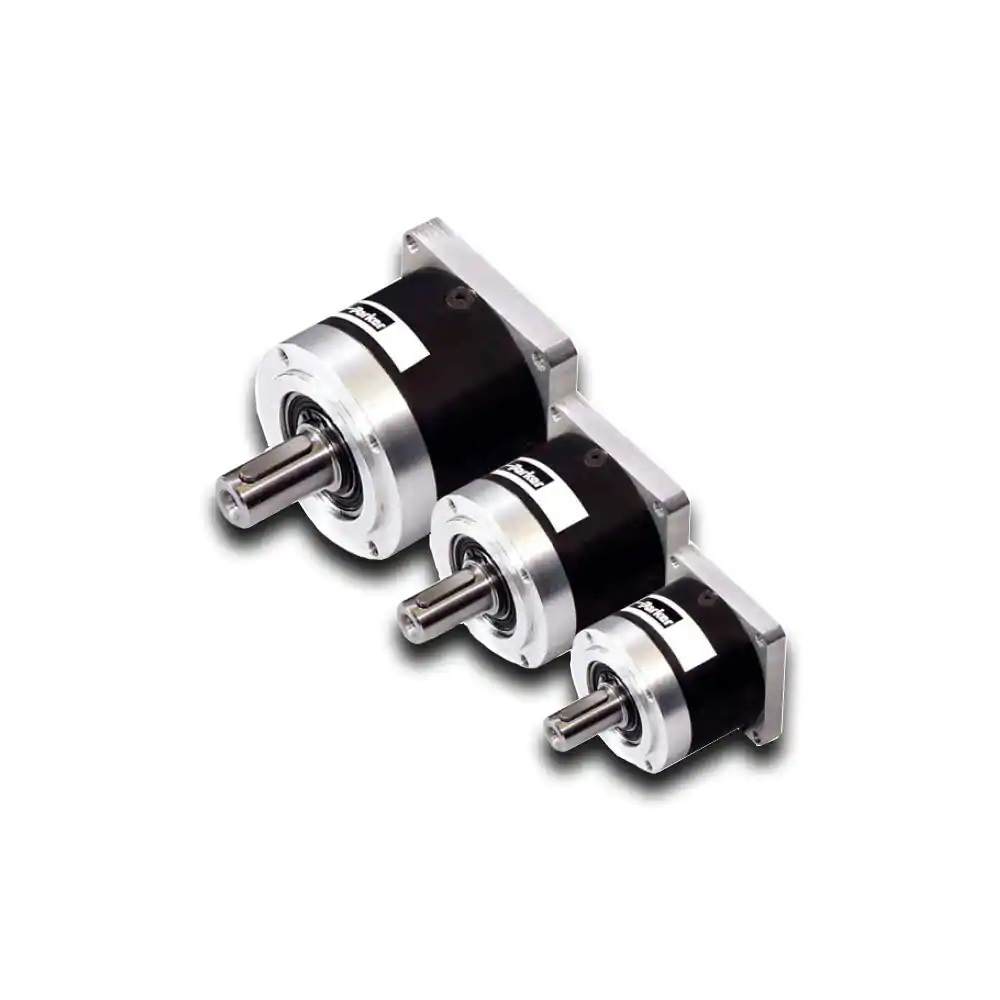

PTN Series
The PTN-Series Planetary Gearheads are suitable for use in combination with Parker LCB linear actuator series.
Available in 60-80mm frame sizes, the PTN-series Economy Planetary Gearbox was developed for LCB linear actuator applications where low backlash is not required.
PTN-Series Economical Inline Planetary Gearheads - Features:
• Frame Sizes: 60 - 80mm
• Ratio Options:
- 4:1
- 8:1
- 25:1
• Backlash: to < 25 arc-minutes • Efficiency: up to 96% • Quiet Operation: less than 65db • Input Speeds: up to 4000 RPM • Space-saving design • High output torque • Fast and easy motor mounting • Direction of rotation equidirectional
- 4:1
- 8:1
- 25:1
• Backlash: to < 25 arc-minutes • Efficiency: up to 96% • Quiet Operation: less than 65db • Input Speeds: up to 4000 RPM • Space-saving design • High output torque • Fast and easy motor mounting • Direction of rotation equidirectional
| PERFORMANCE | Standard Precision |
| CONFIGURATION | Inline |
| GEAR GEOMETRY | Planetary |
| FRAME SIZE | 60mm
80mm |
| STANDARD BACKLASH (ARC-MIN) | < 12 to < 25 |
| LOW BACKLASH (ARC-MIN) | - |
| NOMINAL TORQUE (NM) | 15 ... 110 |
| NOMINAL TORQUE (IN-LBS) | 133 ... 974 |
| RADIAL LOAD (N) | 500 ... 950 |
| RADIAL LOAD (LBS) | 112 ... 214 |
| RATIO | 4
8 25:1 |
| MAXIMUM INPUT SPEED (RPM) | 4000 |
| DEGREE OF PROTECTION (IP) | IP54 |
| EFFICIENCY AT NOMINAL TORQUE (%) | 94 ... 96 |
