PE Series

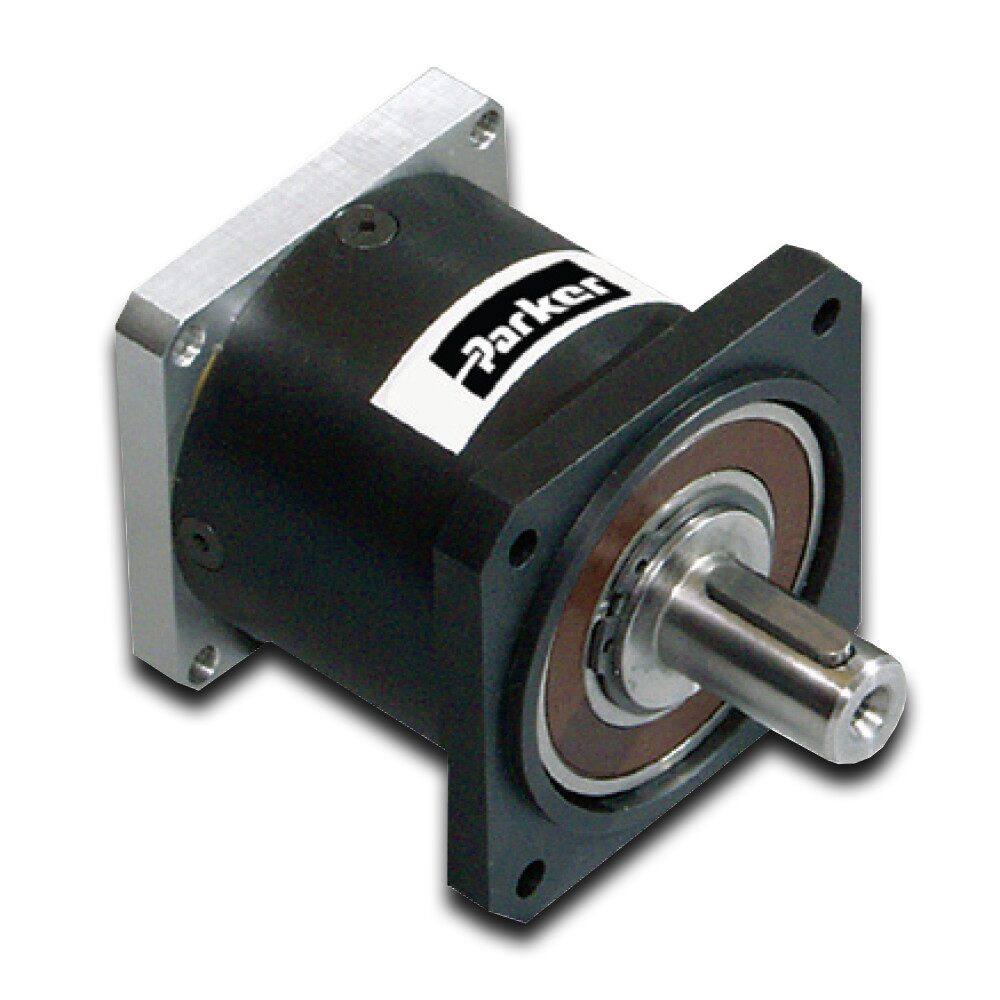

The Standard Precision PE-Series Inline Planetary Gearheads are available in 40-155mm frame sizes and offer high torque, low backlash, high input speeds and a small package size with an excellent price/performance ratio.
The PE-Series Planetary Gearbox is the perfect economy gearbox for all applications where considerably low backlash is not of vital importance.
Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • Frame Sizes: 40 - 155mm • Ratio Options: 3:1 - 64:1 • Backlash: to < 7 arc-minutes • Efficiency: up to 97% • Quiet Operation: less than 70db • High Input Speeds: up to 18 000 RPM • Excellent price/performance ratio • High output torques • High quality (ISO 9001) • Any fitting position possible • Simple motor fitting • Life time lubrication • Direction of rotation equidirectional • Balanced motor pinion Applications: • Industrial Equipments • In-Plant / Automotive Industry Equipments • Robotics • Special Machines
Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • Frame Sizes: 40 - 155mm • Ratio Options: 3:1 - 64:1 • Backlash: to < 7 arc-minutes • Efficiency: up to 97% • Quiet Operation: less than 70db • High Input Speeds: up to 18 000 RPM • Excellent price/performance ratio • High output torques • High quality (ISO 9001) • Any fitting position possible • Simple motor fitting • Life time lubrication • Direction of rotation equidirectional • Balanced motor pinion Applications: • Industrial Equipments • In-Plant / Automotive Industry Equipments • Robotics • Special Machines
| PERFORMANCE | Standard Precision |
| CONFIGURATION | Inline |
| GEAR GEOMETRY | Planetary |
| FRAME SIZE | 60mm
90mm 115mm |
| STANDARD BACKLASH (ARC-MIN) | < 8 to < 18 |
| LOW BACKLASH (ARC-MIN) | - |
| NOMINAL TORQUE (NM) | 28 ... 260 |
| NOMINAL TORQUE (IN-LBS) | 248 ... 2300 |
| RADIAL LOAD (N) | 340 ... 2400 |
| RADIAL LOAD (LBS) | 76 ... 540 |
| RATIO | 3:1
4:1 5:1 8:1 9:1 12:1 15:1 16:1 20:1 25:1 32:1 40:1 60:1 64:1 80:1 100:1 120:1 160:1 200:1 256:1 320:1 512:1 |
| MAXIMUM INPUT SPEED (RPM) | 13000 |
| DEGREE OF PROTECTION (IP) | IP54 |
| EFFICIENCY AT NOMINAL TORQUE (%) | 90 ... 96 |
