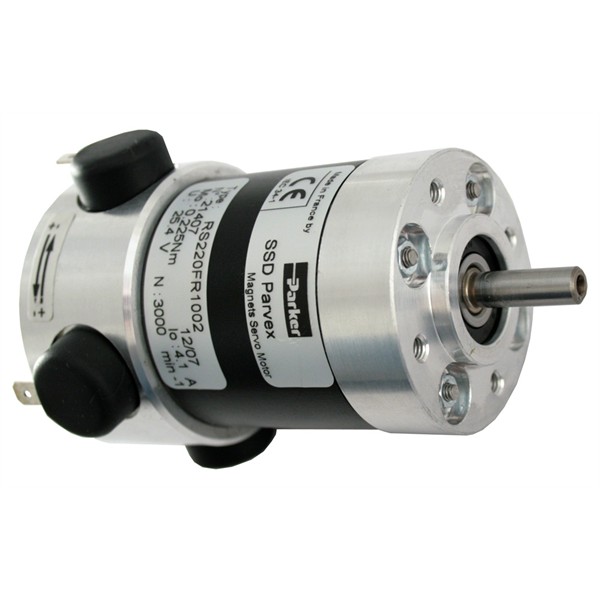

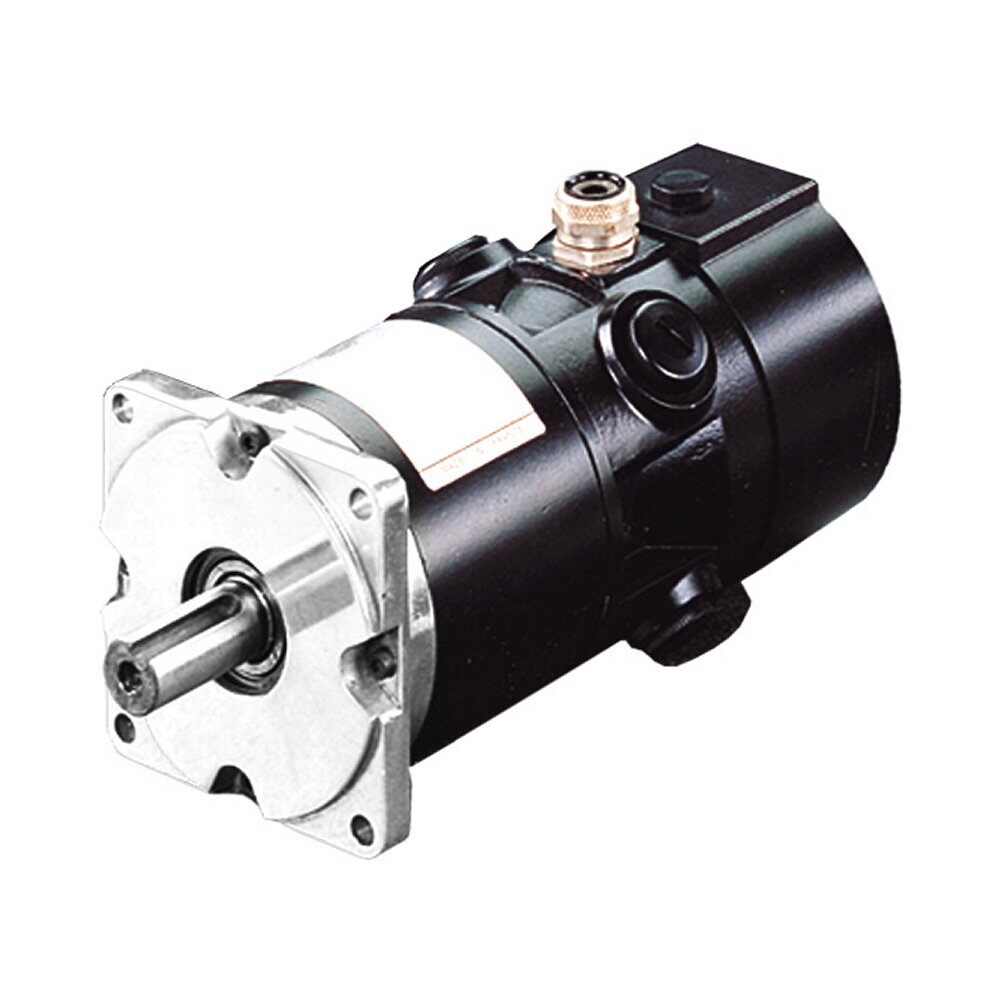

RS Series
RS-Series High Performance DC Servo Motors provide excellent low-speed function and very long service life. With low-speed torques up to 13Nm and speeds to 3000 min-1, they have options of Tacho, Encoder or Resolver Feedback, plus Brake and 2nd Shaft.
Using high energy magnets, RS-series DC motors combined with RTS drives are particularly suitable for applications which require a very compact solution or a high dynamic level.
Applications:
• Factory Automation
• Life Science Diagnostic
• Textile Machines
• Radiation Hardend
Technical Overview:
• Motor Technology: Brushed DC servo motor with rare earth magnets
• Frame Sizes:
- 39mm
- 52mm
- 68mm
- 83mm
- 97mm
- 120mm
• Torque Range: 0.05 ... 13 Nm • Speed Range: 2000 ... 3000 min-1 • Voltage Supply: 20.7 ... 105VDC • Number of Poles: 4 • Protection Level:
- IP40 (RS1-RS4)
- IP54 (RS5-RS6) • Feedback Sensors:
- Tacho
- Encoder
- Resolver
• Marking: CE (except RS6) Features: • Shaft - RS1 to RS4: Smooth full shaft - RS5 and RS6: Full keyed shaft • 2nd Shaft End - RS1 to RS3: possibility to mount standard tacho or encoder - RS5 and RS6: possibility to mount standard tacho, adaptation for encoder mounting in option • Output Cables - 1 m without connector • Options - brake (RS2 to RS6) / - tachometer - adaptation 2nd shaft end for encoder mounting (RS5 and RS6) Advantages: • High performance characteristics • Excellent low-speed functioning • High compactness • Very long service life • Rare earth magnets • Tacho, encoder resolver and brake in option
- 39mm
- 52mm
- 68mm
- 83mm
- 97mm
- 120mm
• Torque Range: 0.05 ... 13 Nm • Speed Range: 2000 ... 3000 min-1 • Voltage Supply: 20.7 ... 105VDC • Number of Poles: 4 • Protection Level:
- IP40 (RS1-RS4)
- IP54 (RS5-RS6) • Feedback Sensors:
- Tacho
- Encoder
- Resolver
• Marking: CE (except RS6) Features: • Shaft - RS1 to RS4: Smooth full shaft - RS5 and RS6: Full keyed shaft • 2nd Shaft End - RS1 to RS3: possibility to mount standard tacho or encoder - RS5 and RS6: possibility to mount standard tacho, adaptation for encoder mounting in option • Output Cables - 1 m without connector • Options - brake (RS2 to RS6) / - tachometer - adaptation 2nd shaft end for encoder mounting (RS5 and RS6) Advantages: • High performance characteristics • Excellent low-speed functioning • High compactness • Very long service life • Rare earth magnets • Tacho, encoder resolver and brake in option
| FRAME SIZE | 39mm
52mm 68mm 83mm 97mm 120mm |
| CONTINUOUS TORQUE (NM) | 0.05 ... 13 |
| CONTINUOUS TORQUE (IN-LBS) | 0.44 ... 115 |
| PEAK TORQUE (NM) | 0.14 ... 42 |
| PEAK TORQUE (IN-LBS) | 1,24 ... 371 |
| RATED SPEED (RPM) | 2000 ... 3000 |
| INPUT SUPPLY VOLTAGE | 20.7 ... 105VDC |
| MOTOR POLE COUNT | 4 |
| FEEDBACK DEVICE | Tacho
Encoder Resolver |
| PARKER DRIVE COMPATIBILITY | RTS |
| CERTIFICATES | CE marked (except RS6) |
| IP RATING | IP40 (RS1-RS4)
IP54 (RS5-RS6) |
| HOLDING BRAKE | Optional |
| SHAFT TYPE | Smooth (RS1-RS4)
Keyway (RS5-RS6) 2nd Shaft (rear) |
