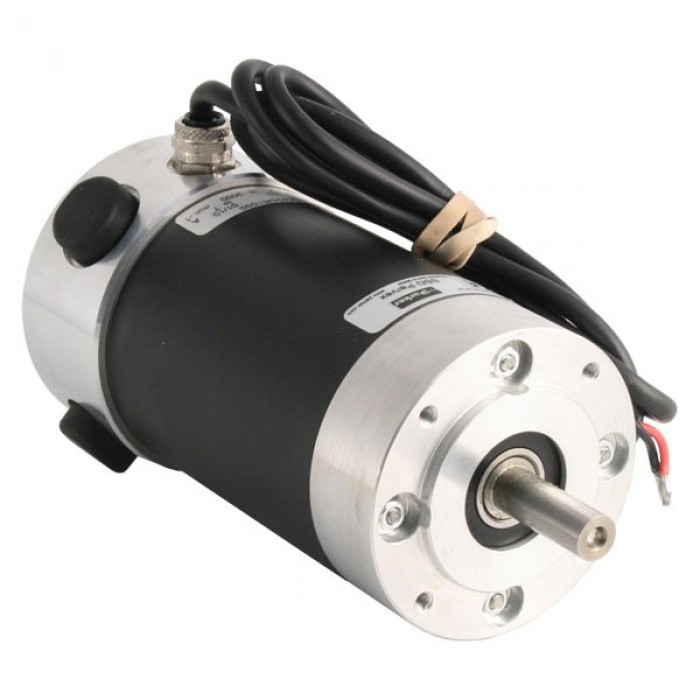

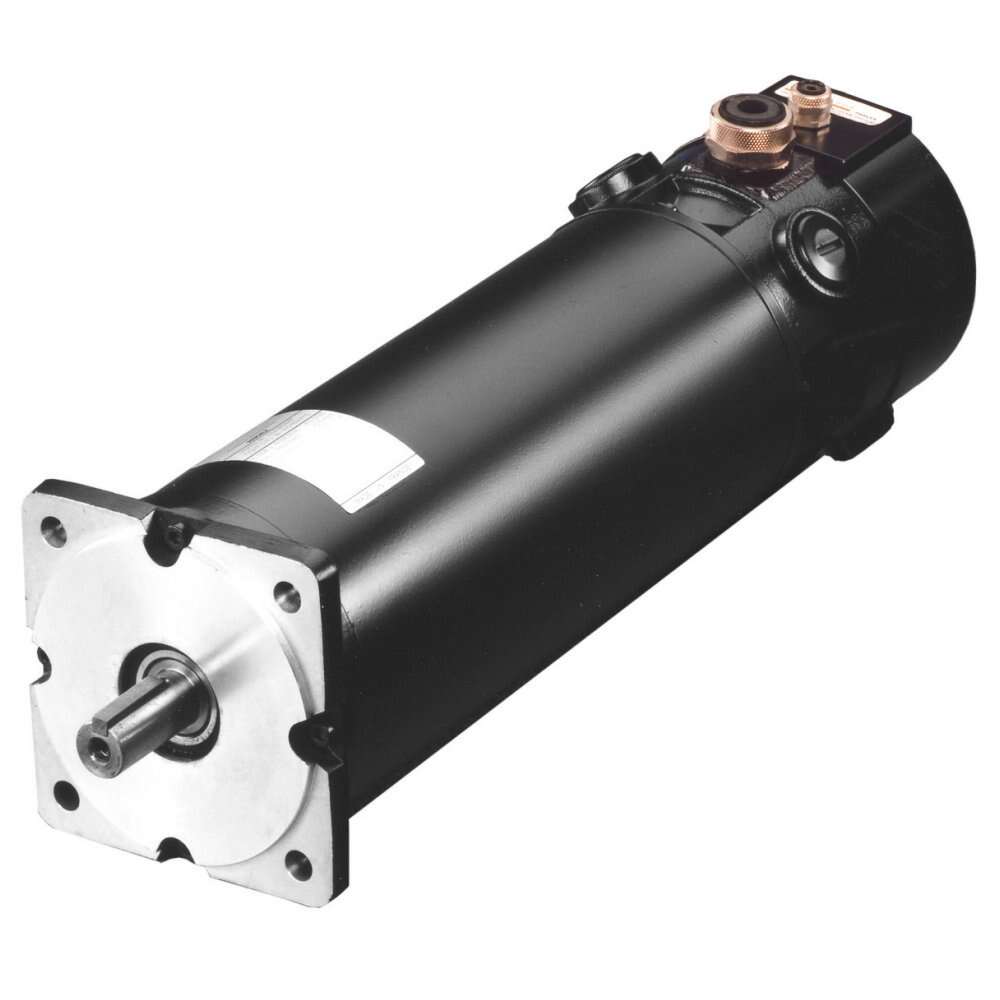

RX Series
RX-Series Low-Cost DC servo motors provide low torque modulation, very long service life and an excellent price/performance ratio. With low-speed torques up to 7.8Nm and speeds to 3000 min-1, they have a 2nd shaft end plus the options of Tacho and Brake.
The RX-series DC motors, combined with RTS drives, provide an economical solution for any servo applications. They are particularly suitable for low power systems in clean atmospheres.
Applications:
• Factory Automation
• Life Science Diagnostic
Technical Overview:
• Motor Technology: Brushed DC servo motor with rare ferrite magnets
• Frame Sizes:
- 58mm
- 84mm
- 100mm
- 120mm
• Torque Range: 0.28 ... 7.8 Nm • Speed Range: 2400 ... 3000 min-1 • Voltage Supply : 44.5 ... 134VDC • Number of Poles: 4 • Protection Level: IP40 (RX1-RX3) | IP54 (RX5-RX6) • Feedback Sensors:
- Tacho
- Encoder
• Marking: CE Features: • Shaft - RX1 and RX3: Smooth full shaft - RX5 and RX6: Full keyed shaft
• 2nd Shaft End - RX1 and RX3: possibility to mount standard tacho or encoder - RX5 and RX6: possibility to mount standard tacho, adaptation for encoder mounting in option
• Output Cables - 1 m without connector • Options
- brake
- tachometer
- adaptation 2nd shaft end for encoder mounting (RX5 and RX6) Advantages: • Excellent price / performances ratio • Very low torque modulation • High quality construction • Very long service life • 2nd shaft end for tacho and encoder mounting • Tacho and brake as option
- 58mm
- 84mm
- 100mm
- 120mm
• Torque Range: 0.28 ... 7.8 Nm • Speed Range: 2400 ... 3000 min-1 • Voltage Supply : 44.5 ... 134VDC • Number of Poles: 4 • Protection Level: IP40 (RX1-RX3) | IP54 (RX5-RX6) • Feedback Sensors:
- Tacho
- Encoder
• Marking: CE Features: • Shaft - RX1 and RX3: Smooth full shaft - RX5 and RX6: Full keyed shaft
• 2nd Shaft End - RX1 and RX3: possibility to mount standard tacho or encoder - RX5 and RX6: possibility to mount standard tacho, adaptation for encoder mounting in option
• Output Cables - 1 m without connector • Options
- brake
- tachometer
- adaptation 2nd shaft end for encoder mounting (RX5 and RX6) Advantages: • Excellent price / performances ratio • Very low torque modulation • High quality construction • Very long service life • 2nd shaft end for tacho and encoder mounting • Tacho and brake as option
| FRAME SIZE | 58mm
84mm 100mm 120mm |
| CONTINUOUS TORQUE (NM) | 0.28 ... 7.8 |
| CONTINUOUS TORQUE (IN-LBS) | 2.48 ... 69 |
| PEAK TORQUE (NM) | 0.9 ... 22 |
| PEAK TORQUE (IN-LBS) | 8 ... 195 |
| RATED SPEED (RPM) | 2400 ... 3000 |
| INPUT SUPPLY VOLTAGE | 44.5 ... 134VDC |
| MOTOR POLE COUNT | 4 |
| FEEDBACK DEVICE | Tacho
Encoder |
| PARKER DRIVE COMPATIBILITY | RTS |
| CERTIFICATES | CE marked |
| IP RATING | IP40 (RX1-RX3)
IP54 (RX5-RX6) |
| HOLDING BRAKE | Optional |
| SHAFT TYPE | Smooth (RX1-RX3)
Keyway (RX5-RX6) 2nd Shaft (rear) |
