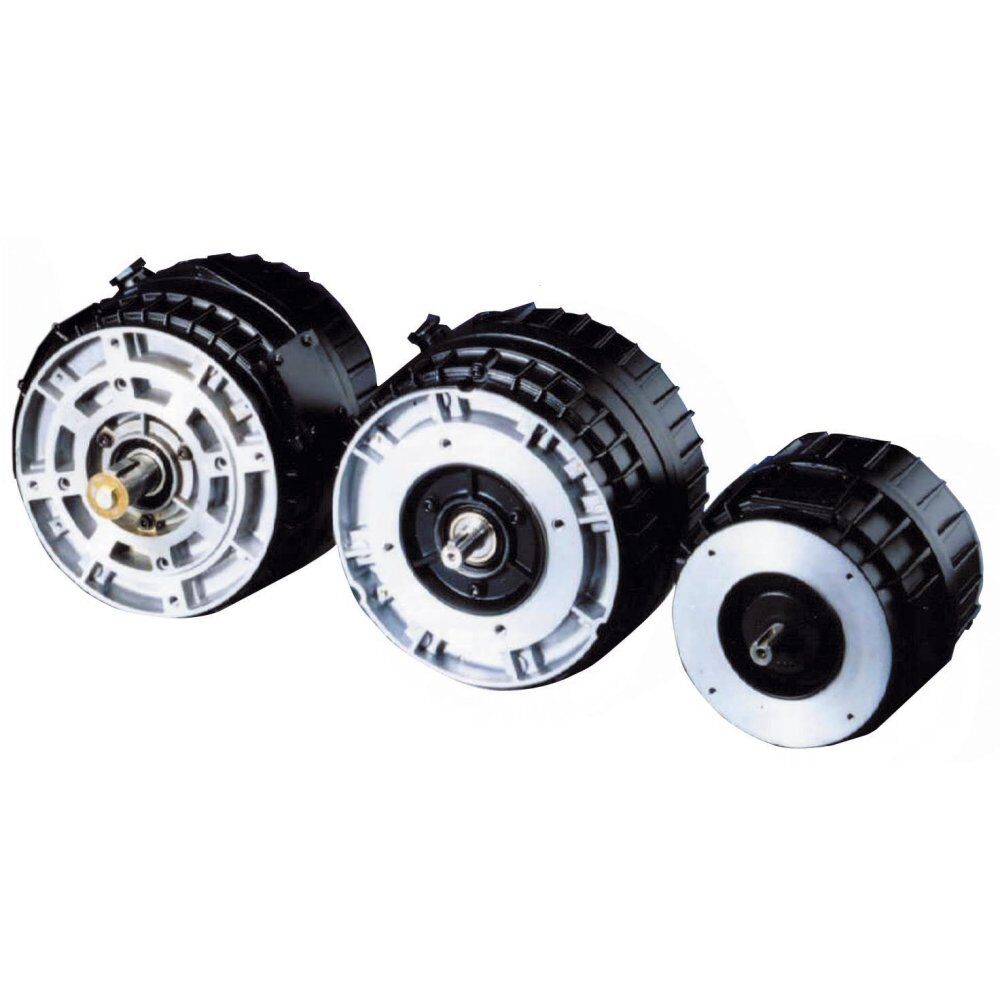

AXEM Series
AXEM Pancake DC - Brushed servo motors have a disk rotor and offer high dynamic characteristics, exceptional regulation at low speed plus silent and vibration-free operation. Robust, efficient & low maintenance, they offer torques to 19Nm and speeds to 4800 min-1.
The AXEM motor, with more than 2 million units produced, is one of the most widespread servo motors in the world. With its disk rotor, composed solely of copper and insulator the Axem motor achieves high dynamics and excellent regulation of motion at low speed, as well as silent and vibration-free functioning. It is robust, efficient, and low maintenance.
Applications:
• Factory Automation
• Life Science Diagnostic
• Textile Machines
• Marine
Technical Overview:
• Motor Technology: disc rotor DC brushed servo motor
• Frame Sizes:
- 110mm
- 140mm
- 160mm
- 211mm
- 278mm
• Torque Range: 0.14 ... 19.2 Nm • Speed Range: 3000 ... 4800 min-1 • Voltage Supply: 14 ... 178VDC • Number of Poles: NA • Protection Level: IP44 | IP20 (for ventilated models) • Feedback Sensors: Encoder • Marking: No Marking Advantages: • Very low speed modulation • Exceptional regulation at low speed • High dynamic characteristics low rotor inertia • Silent and vibration-free functioning • Maintenance free • Disk rotor • Protection: IP44 / IP20 for ventilated models • Class F insulation
- 110mm
- 140mm
- 160mm
- 211mm
- 278mm
• Torque Range: 0.14 ... 19.2 Nm • Speed Range: 3000 ... 4800 min-1 • Voltage Supply: 14 ... 178VDC • Number of Poles: NA • Protection Level: IP44 | IP20 (for ventilated models) • Feedback Sensors: Encoder • Marking: No Marking Advantages: • Very low speed modulation • Exceptional regulation at low speed • High dynamic characteristics low rotor inertia • Silent and vibration-free functioning • Maintenance free • Disk rotor • Protection: IP44 / IP20 for ventilated models • Class F insulation
| FRAME SIZE | 110mm
140mm 160mm 211mm 278mm |
| CONTINUOUS TORQUE (NM) | 0.14 ... 19.2 |
| CONTINUOUS TORQUE (IN-LBS) | 1.24 ... 170 |
| PEAK TORQUE (NM) | 0.5 ... 31 |
| PEAK TORQUE (IN-LBS) | 4,4 ... 274 |
| RATED SPEED (RPM) | 3000 ... 4800 |
| INPUT SUPPLY VOLTAGE | 14 ... 178VDC |
| MOTOR POLE COUNT | n/a |
| FEEDBACK DEVICE | Encoder |
| PARKER DRIVE COMPATIBILITY | RTS |
| CERTIFICATES | No marking |
| IP RATING | IP44
IP20 (for ventilated models) |
| HOLDING BRAKE | - |
| SHAFT TYPE | Smooth
Keyway |
