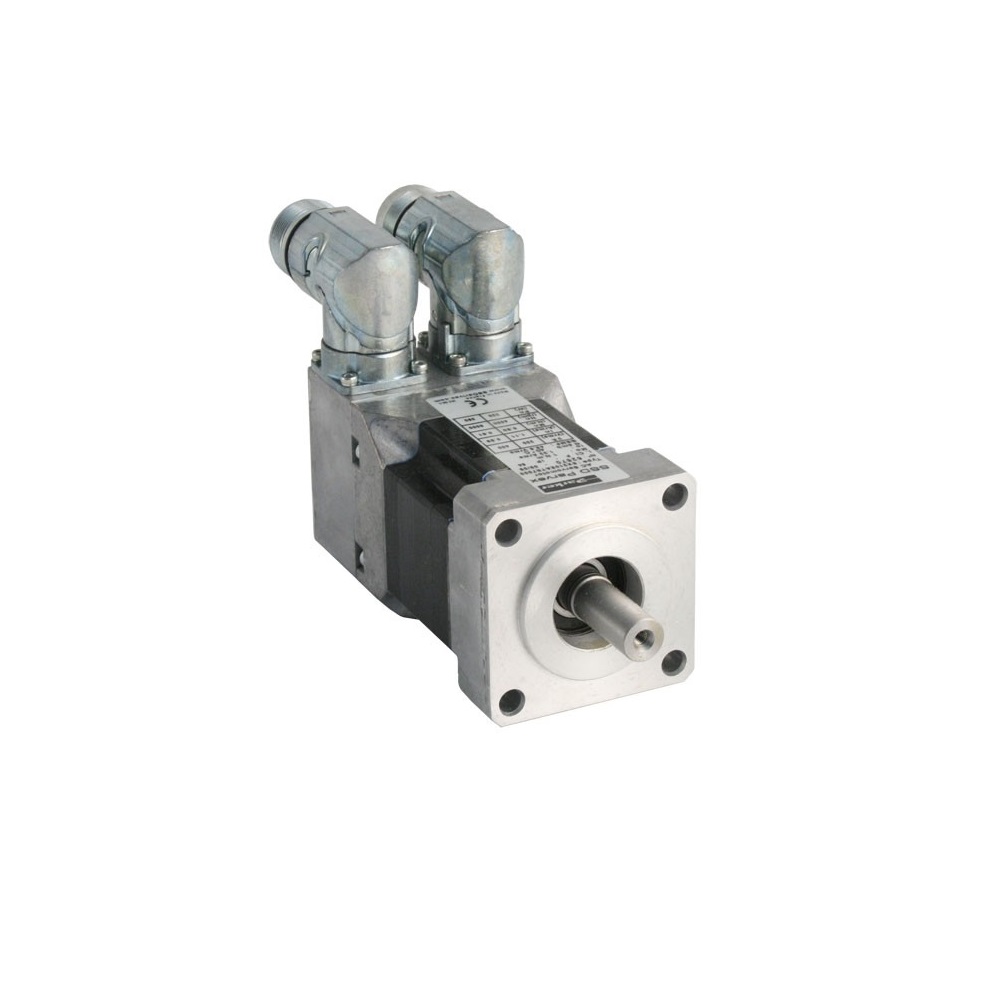

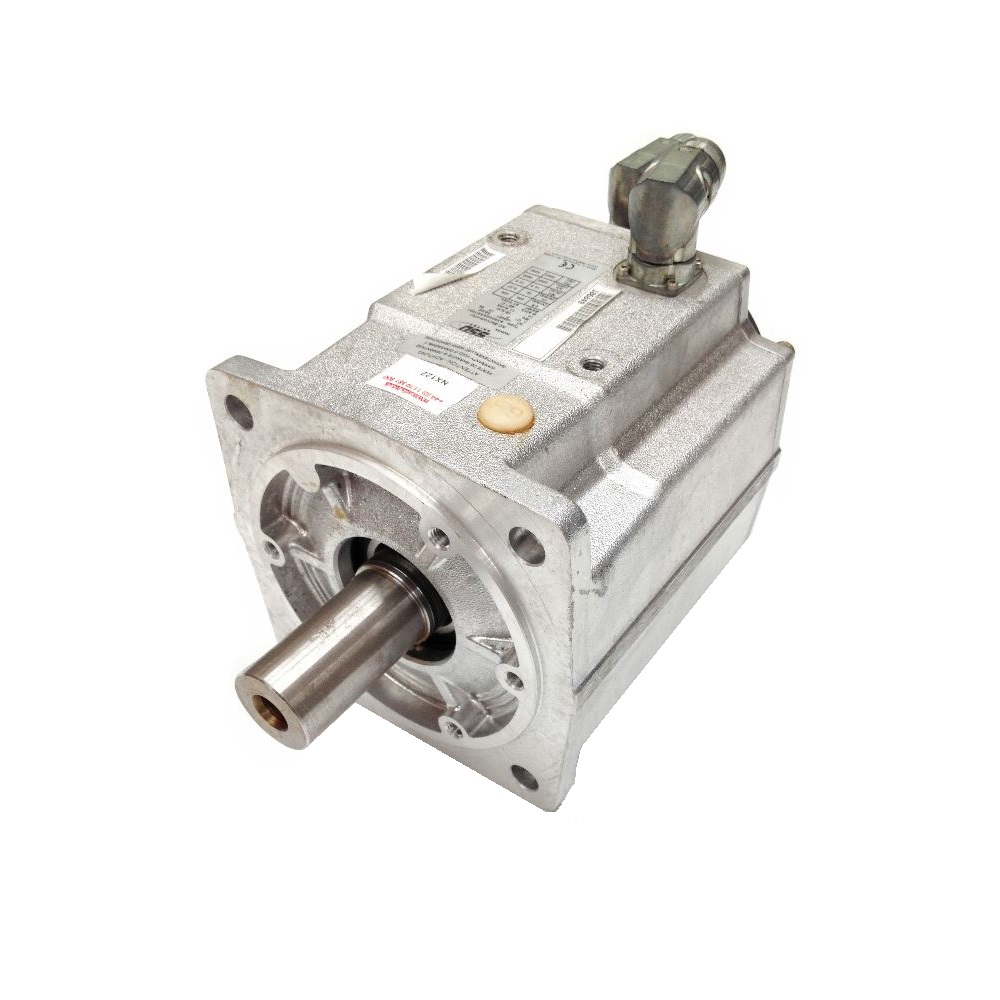

NX Series

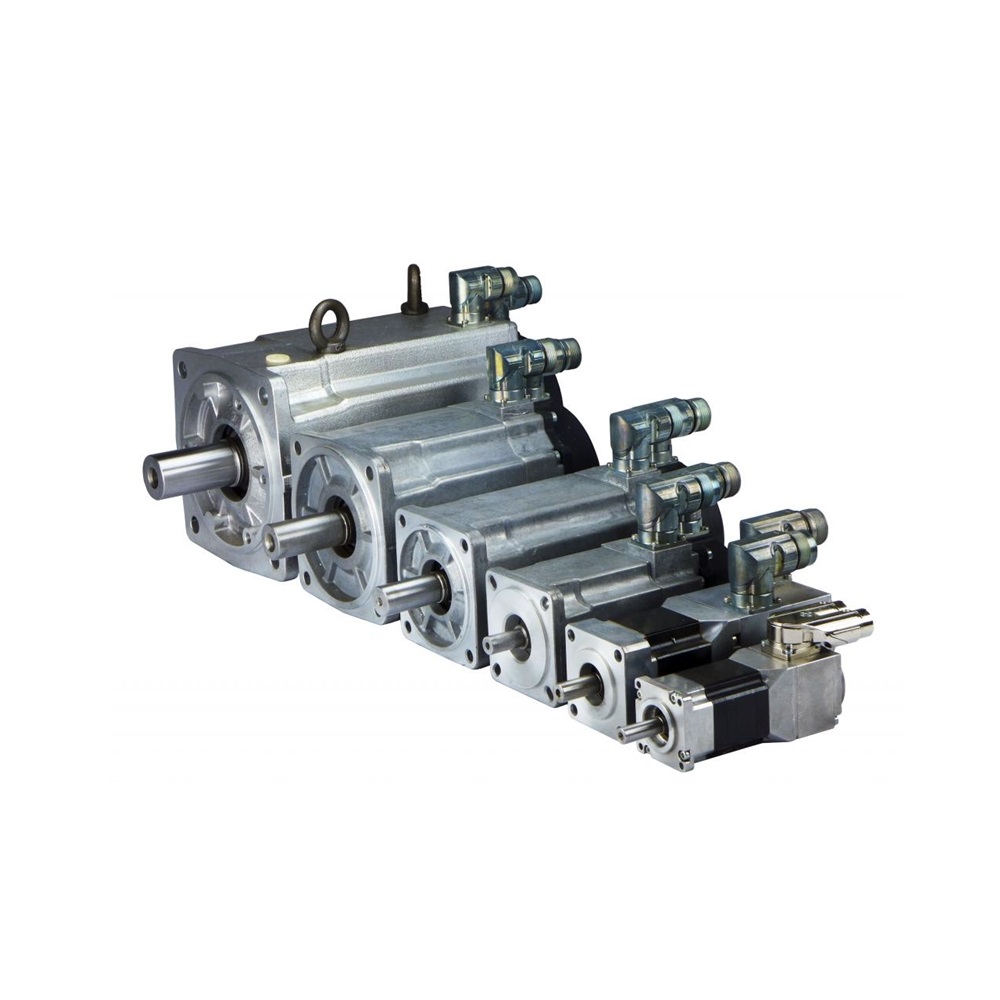

Available in 42-155mm frame sizes, NX motors are designed to provide low cogging torque and smooth operation. A large set of torque/speed characteristics, options and customization possibilities are available, as well as CE and UL marking certification.
Designed to provide low cogging torque and smooth operation, the NX Series brushless servo motors from Parker combine exceptional precision and motion quality, high dynamic performances and very compact dimensions.
A large set of torque/speed characteristics, options and customization possibilities are available, making NX Series synchronous servo motors the ideal solution for most servo system applications. The sensorless version of NX Series servo motor has been designed to offer a cost effective brushless solution in association with the Parker SSD AC650S drives. Controlled without feedback sensor, NX Series servo motors are an innovative, compact, performant and highly efficient alternative to traditional induction motors. Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • High precision and motion quality • High dynamic performance • Low cogging torque / Smooth operation • Compact dimensions and robustness • Large set of options and customization possibilities • CE and UL marking certification available Applications: • Machine tools axis • Packaging machinery • Robot applications • Special machinery Technical Specifications: • Motor Type: Permanent magnet synchronous brushless servo motor • Rotor Design: Rotor with concentrated-flux rare earth magnets • Number of Poles: 10 • Power Range: 0.2 – 13.7 kW • Torque Range: 0.45 – 83 Nm • Speed Range: 0 – 9800 min-1 • Mounting: Flange with smooth holes • Shaft End:
- Plain keyed shaft
- Plain smooth shaft (option)
• Cooling:
- Natural Convection
- Forced Ventilation (NX860V only)
- Water Cooled (NX860W only)
• Protection Level (IEC60034-5)
- IP64 (standard)
- IP65 (option)
- IP44 (ventilated version)
• Feedback sensors:
- Resolver
- EnDat Absolute Encoder
- Hiperface Absolute Encoder
- Posivex (only with Digivex Motion)
• Other options:
- Brake
- Thermal Protection (PTC, thermo switch or KTY)
• Marking:
- CE
- UL
• Voltage Supply: 230 / 400-480 VAC • Temperature Class (IEC60034-1):
- CE - Class F
- UL - Class A (NX1 – 2)
- Class F (NX3 – 8)
• Connection:
- Connectors
- Flying Cables
- Terminal Box (NX860V)
A large set of torque/speed characteristics, options and customization possibilities are available, making NX Series synchronous servo motors the ideal solution for most servo system applications. The sensorless version of NX Series servo motor has been designed to offer a cost effective brushless solution in association with the Parker SSD AC650S drives. Controlled without feedback sensor, NX Series servo motors are an innovative, compact, performant and highly efficient alternative to traditional induction motors. Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • High precision and motion quality • High dynamic performance • Low cogging torque / Smooth operation • Compact dimensions and robustness • Large set of options and customization possibilities • CE and UL marking certification available Applications: • Machine tools axis • Packaging machinery • Robot applications • Special machinery Technical Specifications: • Motor Type: Permanent magnet synchronous brushless servo motor • Rotor Design: Rotor with concentrated-flux rare earth magnets • Number of Poles: 10 • Power Range: 0.2 – 13.7 kW • Torque Range: 0.45 – 83 Nm • Speed Range: 0 – 9800 min-1 • Mounting: Flange with smooth holes • Shaft End:
- Plain keyed shaft
- Plain smooth shaft (option)
• Cooling:
- Natural Convection
- Forced Ventilation (NX860V only)
- Water Cooled (NX860W only)
• Protection Level (IEC60034-5)
- IP64 (standard)
- IP65 (option)
- IP44 (ventilated version)
• Feedback sensors:
- Resolver
- EnDat Absolute Encoder
- Hiperface Absolute Encoder
- Posivex (only with Digivex Motion)
• Other options:
- Brake
- Thermal Protection (PTC, thermo switch or KTY)
• Marking:
- CE
- UL
• Voltage Supply: 230 / 400-480 VAC • Temperature Class (IEC60034-1):
- CE - Class F
- UL - Class A (NX1 – 2)
- Class F (NX3 – 8)
• Connection:
- Connectors
- Flying Cables
- Terminal Box (NX860V)
| FRAME SIZE | 42mm
56mm 70mm 92mm 120mm 155mm |
| CONTINUOUS TORQUE (NM) | 0.45 - 83 |
| CONTINUOUS TORQUE (IN-LBS) | 4 - 735 |
| PEAK TORQUE (NM) | 1.7 - 137 |
| PEAK TORQUE (IN-LBS) | 15 - 1213 |
| RATED SPEED (RPM) | 0 - 9800 |
| INPUT SUPPLY VOLTAGE | 230VAC
400-480VAC |
| FEEDBACK DEVICE |
Resolver
EnDat Absolute Encoder (Single-Turn) EnDat Absolute Encoder (Multi-Turn) Hiperface Absolute Encoder (Single-Turn) Hiperface Absolute Encoder (Multi-Turn) Sensorless |
| PARKER DRIVE COMPATIBILITY | Compax3
SLVD-N 637F/638 |
| CERTIFICATES | CE marked
UL/cUL listed |
| IP RATING | IP44 (Ventilated Version)
IP64 IP65 |
| HOLDING BRAKE | Optional |
| COOLING METHOD |
Air-Cooled / Natural Convection
Air-Cooled / Forced Ventilation (NX860V) Water-Cooled (NX860W) |
| SHAFT TYPE | Smooth
Keyway |
