EY Series

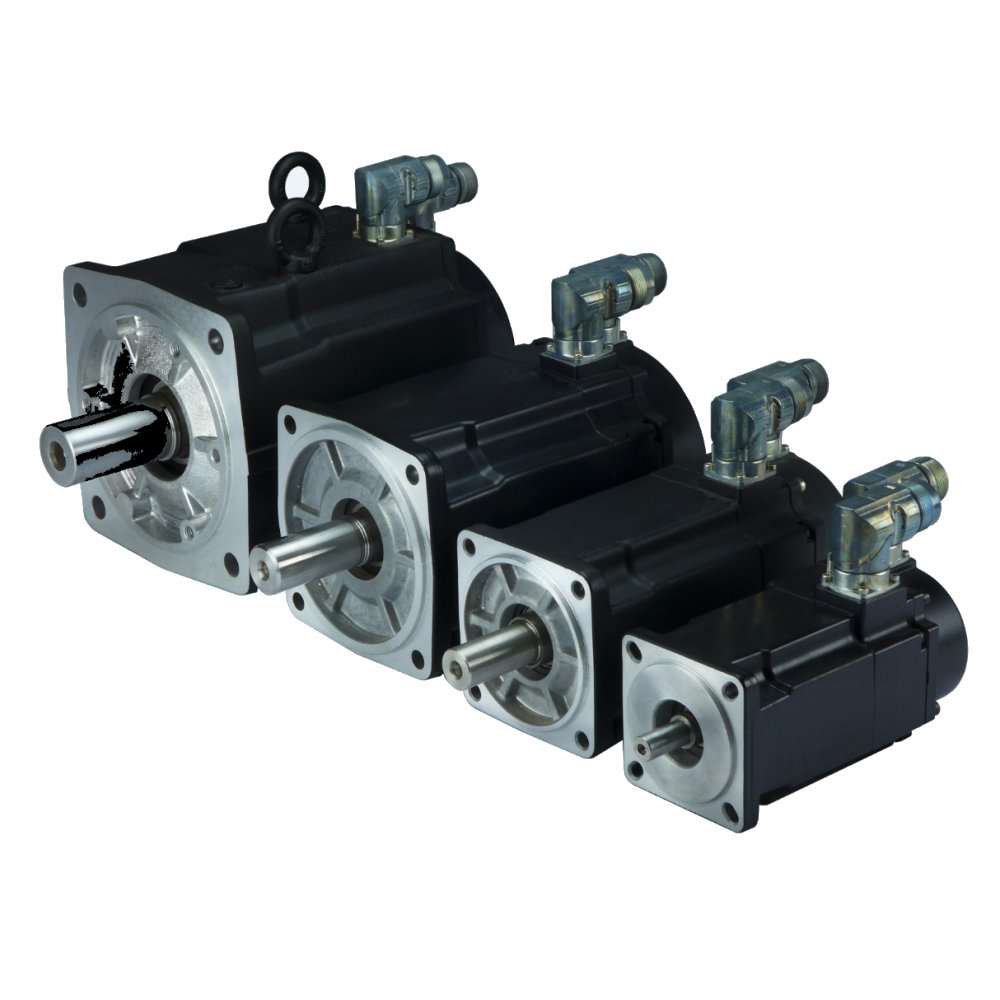

Available in 70-155mm frame sizes, EY Explosion-Proof servo motors are suitable for use in explosive atmospheres in Zone 2 and for an ambiant temperature at 40°c or 60°C. Conforms with European (CE) regulation and international safety standards (IECEx).

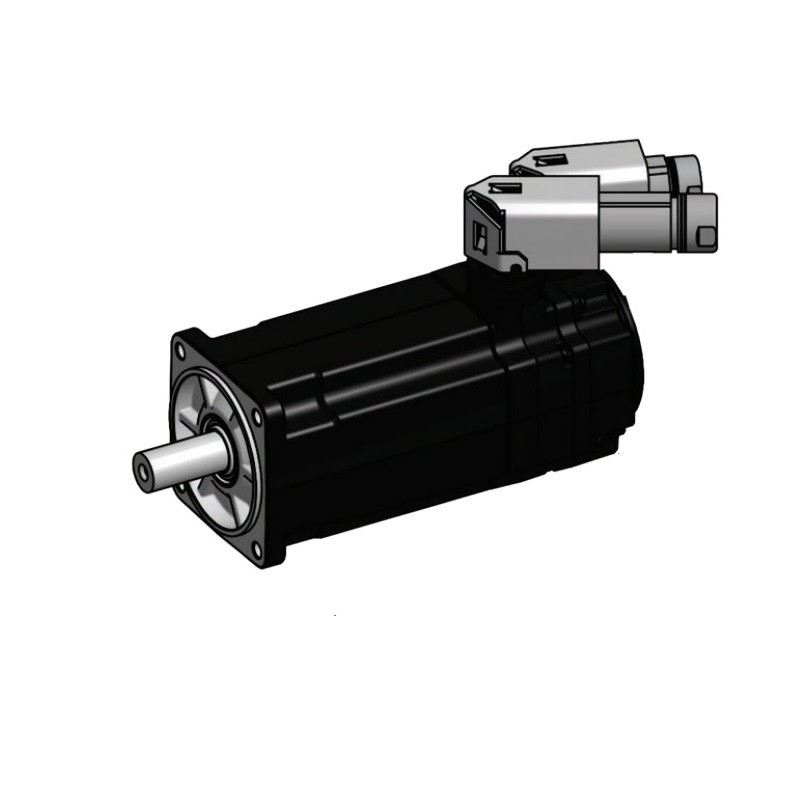

Parker's EY series is a range of permanent magnet explosion-proof brushless servo motors designed for use in explosive atmospheres in zone 2 for gas and dust at 40°C or 60°C ambient temperature. The EY series of servo motors are characterized by excellent motion quality, dynamic acceleration/deceleration capabilities and high torque output over a wide speed range. Various winding variants and numerous options are available to offer maximum flexibility. This range is in accordance with the European (CE) and International safety standards (IECEx).
Markets:
• Packaging Machinery
• Coatings / Ink / Paint
• Industrial Chemical Processing
• Miscellabeous Processing
• Miscellaneous Industrial
• Printing & Marking Equipment
• Semiconductor
• Miscellaneous Electronics
• Pharma
Features/Benefits:
• Brushless servo motors with explosion proof certification from a notified body.
• Conforming with CE/ATEX and International safety standard
• For an ambiant temperature at 40°c or 60°C
• For gas and dust explosive atmospheres
• High motion quality
• High dynamic performance
• Low cogging
• Compactness and robustness
• Maintenance free
• High power density (6 kW in a 155 square frame)
• Compatible with all popular drives
Applications:
• Printing machinery
• Paint spray equipments
• Robot applications
• Special machines
• Cleaning applications
• Actuator for valve in Energy applications
Technical Specifications:
• Motor type: Permanent magnets synchronous motors
• Frame sizes: 70 - 155mm
• Torque range: 2 to 41 Nm
• Speed range: to 6800 rpm
• Number of poles: 10
• Mounting: Flange with smooth holes
• Mechanical interface:
- Solid smooth shaft (standard)
- Solid shaft with key (option)
• Feedback sensors: 2 poles resolver (standard) / sensorless (option) • Thermal protection: PTC integrated into the winding • Other Options: Parking brake European Version Specific: • Voltage Supply: 230 / 400 VAC • Conformance:
- ATEX 2014/34/EU Directive - IEC/EN60034-1
- IEC/EN60034-5
- IEC/EN60079-0
- IEC/EN60079-15 (Gas)
- IEC/EN60079-31 (Dust) standards
• Classification: II 3 GD Ex nA IIC T3 Gc IP65 / Ex tc IIIC T200°C Dc IP65 (Gas and dust) • Ingress Protection Level: IP65 (standard) • Connections: connectors • Marking:
- CE
- ATEX Ex
- IECEx
- Solid smooth shaft (standard)
- Solid shaft with key (option)
• Feedback sensors: 2 poles resolver (standard) / sensorless (option) • Thermal protection: PTC integrated into the winding • Other Options: Parking brake European Version Specific: • Voltage Supply: 230 / 400 VAC • Conformance:
- ATEX 2014/34/EU Directive - IEC/EN60034-1
- IEC/EN60034-5
- IEC/EN60079-0
- IEC/EN60079-15 (Gas)
- IEC/EN60079-31 (Dust) standards
• Classification: II 3 GD Ex nA IIC T3 Gc IP65 / Ex tc IIIC T200°C Dc IP65 (Gas and dust) • Ingress Protection Level: IP65 (standard) • Connections: connectors • Marking:
- CE
- ATEX Ex
- IECEx
| BRAND | Parker |
| PRODUCT TYPE | Brushless Servo Motor |
| PRODUCT STYLE | Rotary / Synchronous |
| SERIES | EY |
| FRAME SIZE | 70mm
92mm 121mm 155mm |
| CONTINUOUS TORQUE (NM) | 2.0 - 41 |
| CONTINUOUS TORQUE (IN-LBS) | 17.7 - 363 |
| PEAK TORQUE (NM) | 6.6 - 137 |
| PEAK TORQUE (IN-LBS) | 58 - 1213 |
| RATED SPEED (RPM) | 0 - 6800 |
| INPUT SUPPLY VOLTAGE | 230VAC |
| FEEDBACK DEVICE | Resolver
Sensorless |
| PARKER DRIVE COMPATIBILITY | PSD1
Compax3 SLVD-N AC30 AC890 |
| PROTECTION/INGRESS RATING | IP65 |
| HOLDING BRAKE | Optional |
| COOLING METHOD | Air-Cooled
Natural Convection |
| SHAFT TYPE | Smooth
Keyway |
| CERTIFICATES | CE marked
UL/cUL listed ATEX 'Ex' Safety Rated (Zone 2) |
