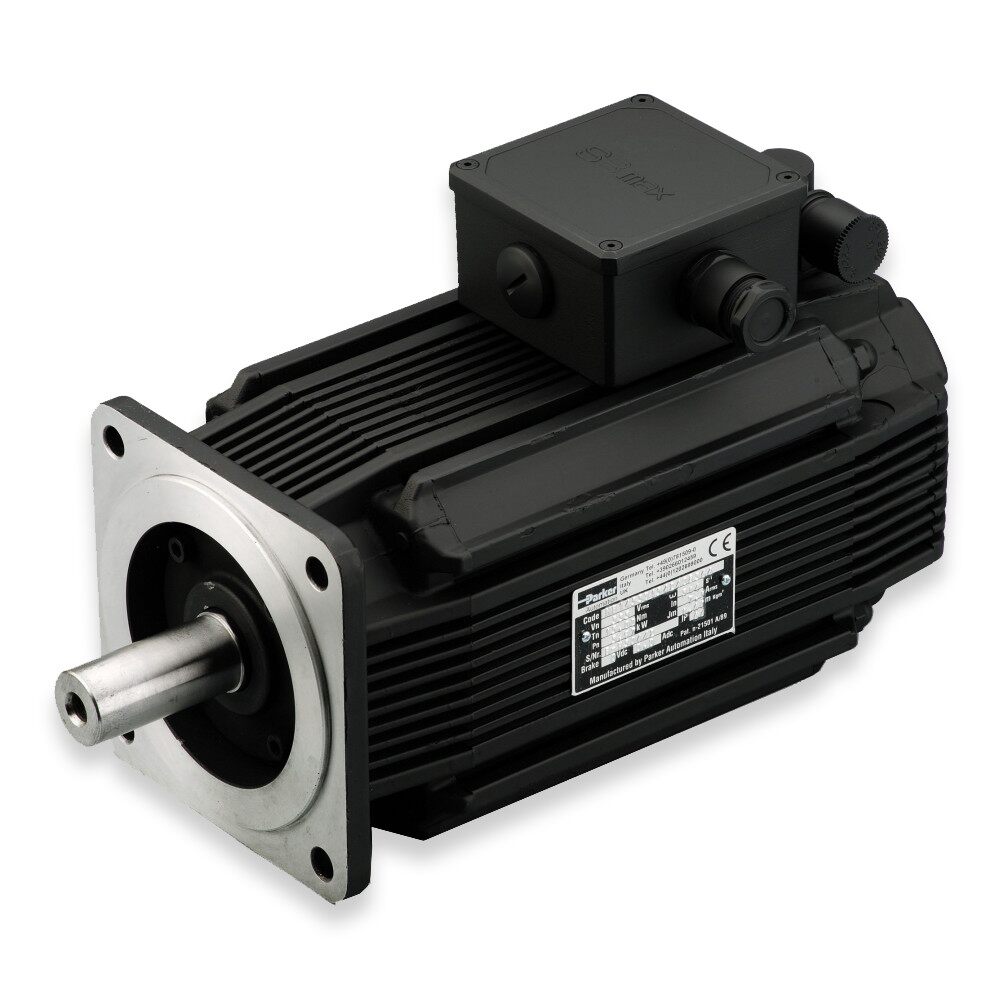

The MH-series of brushless servo motors cater for torques in the range of 0.2 to 269Nm, speeds up to 10000 min-1 and includes a total of 75 models available across 6 frame sizes.

Thanks to the high quality and performance of the Neodymium-Iron-Boron magnets, and also the encapsulation method used to fasten them to the shaft, the MH-series of motors can achieve very high accelerations and withstand high overload without the risk of demagnetisation or detachment of the magnets. Furthermore, shaft and flange size flexibility on all models provides the user with the possibility to optimise their motor selection for any given application. Adequate mechanical over-sizing, low inertia in an extra-strong mechanism and a broad range of models permits the application of the MH-series servo motors in all fields where high dynamic performance and utmost reliability are crucial features.

Typical applications include any type of automatic machinery, especially in the product packaging and handling industry, and wherever the demand exists for axis speed and position synchronisation.

Markets:
• Factory Automation
• Packaging Machinery
• Food & Beverage
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Lab/Diagnostic
• Life Sciences
• Pharma

Features/Benefits:
• Brushless synchronous servo motors available in 56, 70, 105, 145, 205 and 265mm frame sizes
• Speeds up to 10000 min-1 / Continuous stall torques from 0.2 to 269Nm
• High-performance Neodymium magnets / High dynamic performance
• Increased inertia and holding brake options available
• Feedback options of resolver, incremental encoder, EnDat or Hiperface absolute encoder
• High degree of flexibility thanks to a wide range of standard options

Applications:
• Material Forming machines
• Material Handling machines
• In-Plant / Automotive Industry equipments
• Textile Machines
• Robotics
• Special Machines
• Servo Hydraulic Pumps

Technical Specifications:
• Motor Type: Permanent magnet synchronous brushless servo motor
• Rotor Design: Rotor with surface rare earth magnets
• Magnets: NdFeB
• Number of poles: 4 (MH56/70) / 8 (MH105/145/205/265)
• Power Range: 0.5 – 67 kW
• Torque Range: 0.2 – 269 Nm
• Speed Range: 0 – 10000 min-1
• Mounting: Flange with smooth holes / B14 and B3 option
• Shaft End:
- Plain keyed shaft
- Plain smooth shaft (option)

• Cooling:
- Natural convection
- Self ventilation (shaft mounted fan)
- Forced ventilation (electric fan)

• Protection Level (IEC60034-5):
- IP64
- IP65 (option)

• Feedback sensors:
- Resolver
- Incremental Encoder
- EnDat Absolute Encoder
- Hiperface Absolute Encoder

• Other options:
- Holding Brake
- Thermal Protection
- Increased Inertia
- Second Shaft
- External Feedback

• Marking: CE
• Voltage Supply: 230 / 400 VAC (other voltages by request)
• Temperature Class: Class F
• Connection:
- Connectors
- Terminal Box
- Flying Leads (on request)
