SME Series

Low-Inertia Brushless Servo Motors with Encoder Feedback

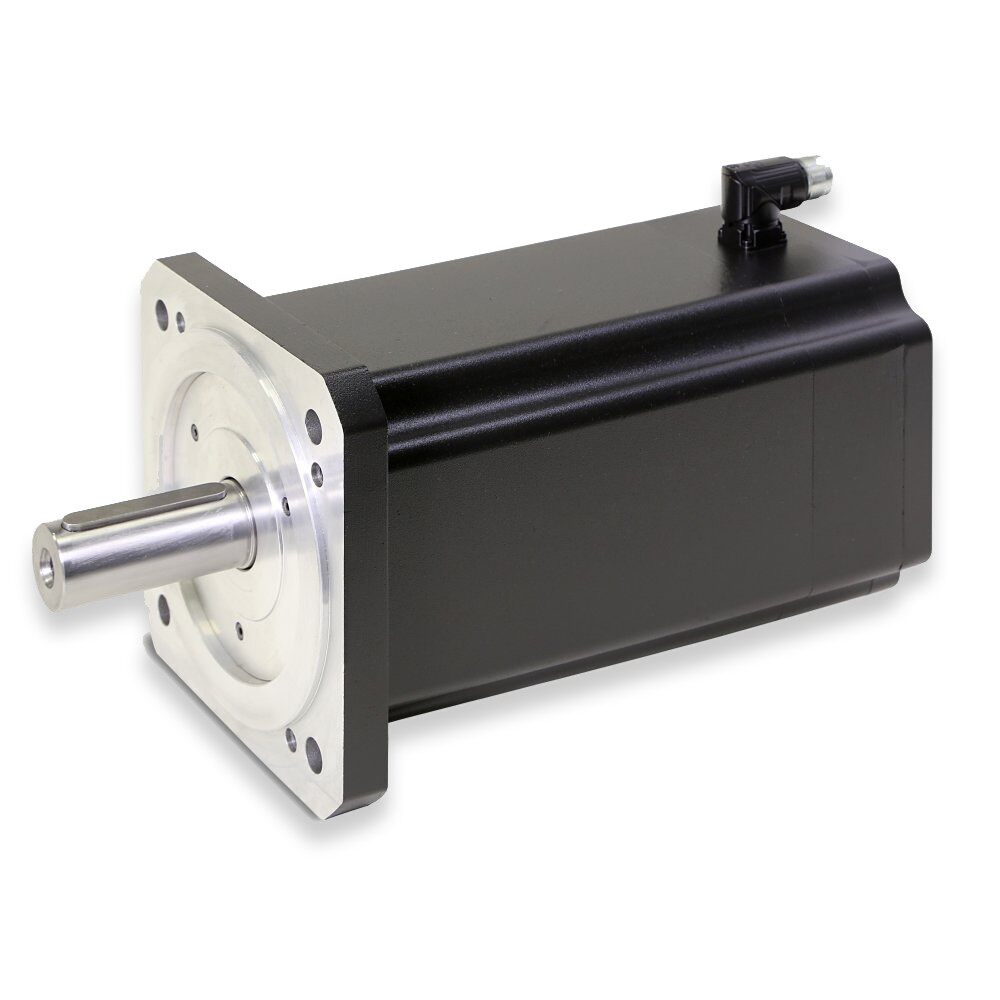

Available in 60-170mm frame sizes, SME motors use innovative salient pole technology to achieve low rotor inertias and high dynamic performance. SME motors have Encoder Feedback.

The SME series brushless servo motors have been designed to combine cutting-edge technology with extremely high performance.

Utilising innovative ‘Salient Pole' technology, featuring Neodymium-Iron-Boron magnets uniquely encapsulated to the motor shaft, SME synchronous servo motors can achieve very high accelerations and withstand high overloads without any risk of demagnetisation or detachment of the magnets. Additionally the motor's dimensions are considerably reduced, offering significant advantages in terms of specific torque and dynamic performance. Compared to traditional-technology brushless servo motors, the specific torque of SME serrvo motors is approximately 30% higher and rotor inertias are extremely low, making it especially suited to highly dynamic applications.

The SME brushless servo motor series offers a high degree of flexibility thanks to its extensive range of motor frame configurations, flange and shaft options, feedback devices and winding options.

Markets:
• Factory Automation
• Packaging Machinery
• Food & Beverage
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Lab/Diagnostic
• Life Sciences
• Pharma

Features/Benefits:
• Brushless synchronous servo motors available in 60, 82, 100, 115, 142 and 170mm frame sizes
• Speeds up to 7500 min-1 / Continuous stall torques from 0.55 to 60Nm
• Low inertia rotor / High dynamic performance
• Increased inertia and holding brake options available
• Feedback options of incremental, single-/multi-turn absolute encoder plus Hiperface DSL
• High degree of flexibility thanks to a wide range of standard options

Applications:
• Material Forming machines
• Material Handling machines
• In-Plant / Automotive Industry equipments
• Textile Machines
• Robotics
• Special Machines
• Servo Hydraulic Pumps

Technical Overview:
• Rotor Design: Rotor with surface rare earth magnets
• Magnets: NdFeB
• Number of poles: 8
• Power Range: 0.2 – 9.4 kW
• Torque Range: 0.55 – 60 Nm
• Speed Range: 0 – 7500 min-1
• Shaft End:
- Plain keyed shaft
- Plain smooth shaft (option)

• Protection Level (IEC60034-5):
- IP64
- IP65 (option)
- IP67 (SME170)

• Feedback sensors:
- Incremental Encoder
- Hiperface Absolute Encoder (SinCos + DSL)
- EnDat Absolute Encoder

• Other options:
- Brake
- Thermal protection
- Increased inertia

• Marking: CE / UL (SME60-142)
• Voltage Supply: 230 / 400 VAC (other voltages by request)
• Temperature Class: Class F
• Connection:
- Connectors
- Terminal Box

Parker SME brushless servo motors are available with standard and custom options to adapt the motor to your application. If the option for your application is not listed, please consult our technical department.
FRAME SIZE 40mm
60mm
82mm
100mm
115mm
142mm
170mm
CONTINUOUS TORQUE (NM) 0.19 - 60
CONTINUOUS TORQUE (IN-LBS) 1.68 - 531
PEAK TORQUE (NM) 0.75 - 190
PEAK TORQUE (IN-LBS) 6.64 - 1682
RATED SPEED (RPM) up to 7500
INPUT SUPPLY VOLTAGE 230VAC
400-480VAC
FEEDBACK DEVICE Incremental Encoder
EnDat Absolute Encoder (Single-Turn)
EnDat Absolute Encoder (Multi-Turn)
Hiperface Absolute Encoder (Single-Turn)
Hiperface Absolute Encoder (Multi-Turn)
Hiperface DSL Absolute Encoder (Single-Turn)
Hiperface DSL Absolute Encoder (Multi-Turn)
PARKER DRIVE COMPATIBILITY TPD-M
SLVD-N
HIDRIVE
ViX
TWIN-N/SPD-N
ARIES
CERTIFICATES CE marked
UL/cUL listed (SME60-142)
IP RATING IP64
IP65
IP67 (SME170 only)
HOLDING BRAKE Optional
COOLING METHOD Air-Cooled / Natural Convection
SHAFT TYPE Smooth
Keyway
