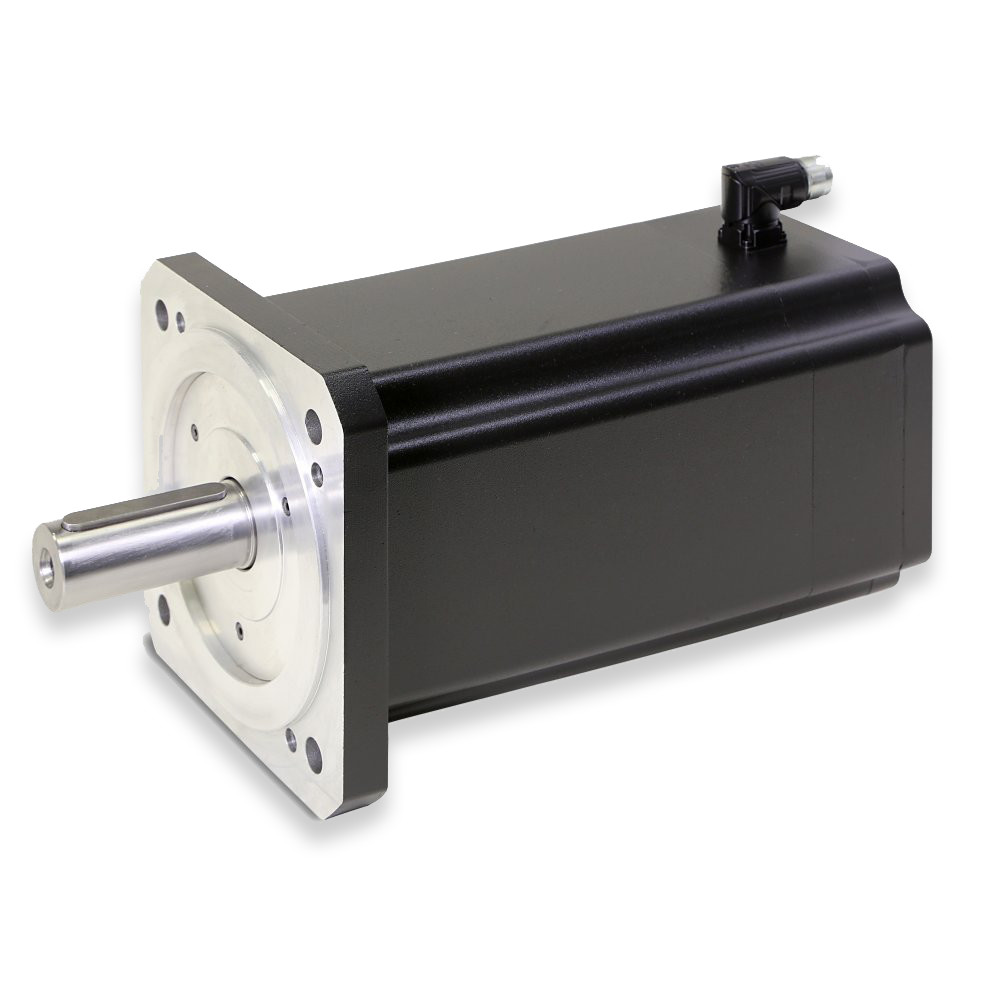

SMH Series
Available in 60-170mm frame sizes, SMH motors use innovative salient pole technology to achieve low rotor inertias and high dynamic performance. SMH motors have the option of either Resolver or Encoder Feedback.
The SMH series brushless servo motors have been designed to combine cutting-edge technology with extremely high performance.
Utilising innovative ‘Salient Pole' technology, featuring Neodymium-Iron-Boron magnets uniquely encapsulated to the motor shaft, SMH synchronous servo motors can achieve very high accelerations and withstand high overloads without any risk of demagnetisation or detachment of the magnets. Additionally the motor's dimensions are considerably reduced, offering significant advantages in terms of specific torque and dynamic performance. Compared to traditional-technology brushless servo motors, the specific torque of SMH serrvo motors is approximately 30% higher and rotor inertias are extremely low, making it especially suited to highly dynamic applications.
The SMH brushless servo motor series offers a high degree of flexibility thanks to its extensive range of motor frame configurations, flange and shaft options, feedback devices and winding options. Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • Brushless synchronous servo motors available in 60, 82, 100, 115, 142 and 170mm frame sizes • Speeds up to 7500 min-1 / Continuous stall torques from 0.55 to 60Nm • Low inertia rotor / High dynamic performance • Increased inertia and holding brake options available • Feedback options of resolver, incremental and single-/multi-turn absolute encoder • High degree of flexibility thanks to a wide range of standard options Applications: • Material Forming machines • Material Handling machines • In-Plant / Automotive Industry equipments • Textile Machines • Robotics • Special Machines • Servo Hydraulic Pumps Technical Overview: • Rotor Design: Rotor with surface rare earth magnets • Magnets: NdFeB • Number of poles: 8 • Power Range : 0.2 – 9.4 kW • Torque Range: 0.55 – 60 Nm • Speed Range: 0 – 7500 min-1 • Shaft End:
- Plain keyed shaft
- Plain smooth shaft (option)
• Cooling: Natural convection • Protection Level (IEC60034-5):
- IP64
- IP65
- IP67 (SMH170)
• Feedback sensors:
- Resolver
- Incremental Encoder
- Absolute Hiperface Encoder (SinCos)
• Other options:
- Brake
- Thermal protection (KTY)
- Increased inertia
• Marking:
- CE
- UL (SMH60-142)
• Voltage Supply: 230 / 400 VAC (other voltages by request) • Temperature Class: Class F • Connection:
- Connectors
- Terminal Box Parker SMH brushless servo motors are available with standard and custom options to adapt the motor to your application. If the option for your application is not listed, please consult our technical department.
Utilising innovative ‘Salient Pole' technology, featuring Neodymium-Iron-Boron magnets uniquely encapsulated to the motor shaft, SMH synchronous servo motors can achieve very high accelerations and withstand high overloads without any risk of demagnetisation or detachment of the magnets. Additionally the motor's dimensions are considerably reduced, offering significant advantages in terms of specific torque and dynamic performance. Compared to traditional-technology brushless servo motors, the specific torque of SMH serrvo motors is approximately 30% higher and rotor inertias are extremely low, making it especially suited to highly dynamic applications.
The SMH brushless servo motor series offers a high degree of flexibility thanks to its extensive range of motor frame configurations, flange and shaft options, feedback devices and winding options. Markets: • Factory Automation • Packaging Machinery • Food & Beverage • Miscellaneous Industrial • Miscellaneous Manufacturing • Lab/Diagnostic • Life Sciences • Pharma Features/Benefits: • Brushless synchronous servo motors available in 60, 82, 100, 115, 142 and 170mm frame sizes • Speeds up to 7500 min-1 / Continuous stall torques from 0.55 to 60Nm • Low inertia rotor / High dynamic performance • Increased inertia and holding brake options available • Feedback options of resolver, incremental and single-/multi-turn absolute encoder • High degree of flexibility thanks to a wide range of standard options Applications: • Material Forming machines • Material Handling machines • In-Plant / Automotive Industry equipments • Textile Machines • Robotics • Special Machines • Servo Hydraulic Pumps Technical Overview: • Rotor Design: Rotor with surface rare earth magnets • Magnets: NdFeB • Number of poles: 8 • Power Range : 0.2 – 9.4 kW • Torque Range: 0.55 – 60 Nm • Speed Range: 0 – 7500 min-1 • Shaft End:
- Plain keyed shaft
- Plain smooth shaft (option)
• Cooling: Natural convection • Protection Level (IEC60034-5):
- IP64
- IP65
- IP67 (SMH170)
• Feedback sensors:
- Resolver
- Incremental Encoder
- Absolute Hiperface Encoder (SinCos)
• Other options:
- Brake
- Thermal protection (KTY)
- Increased inertia
• Marking:
- CE
- UL (SMH60-142)
• Voltage Supply: 230 / 400 VAC (other voltages by request) • Temperature Class: Class F • Connection:
- Connectors
- Terminal Box Parker SMH brushless servo motors are available with standard and custom options to adapt the motor to your application. If the option for your application is not listed, please consult our technical department.
| FRAME SIZE | 40mm
60mm 82mm 100mm 115mm 142mm 170mm |
| CONTINUOUS TORQUE (NM) | 00.19 - 60 |
| CONTINUOUS TORQUE (IN-LBS) | 1.68 - 531 |
| PEAK TORQUE (NM) | 0.75 - 190 |
| PEAK TORQUE (IN-LBS) | 6.64 - 1682 |
| RATED SPEED (RPM) | up to 7500 |
| INPUT SUPPLY VOLTAGE | 230VAC
400-480VAC |
| FEEDBACK DEVICE |
Resolver
Incremental Encoder Hiperface Absolute Encoder (Single-Turn) Hiperface Absolute Encoder (Multi-Turn) |
| PARKER DRIVE COMPATIBILITY | Compax3
PSD1 |
| CERTIFICATES | CE marked
UL/cUL listed (SMH60-142) |
| IP RATING | IP64
IP65 IP67 (SMH170 only) |
| HOLDING BRAKE | Optional |
| COOLING METHOD | Air-Cooled / Natural Convection |
| SHAFT TYPE | Smooth
Keyway |
