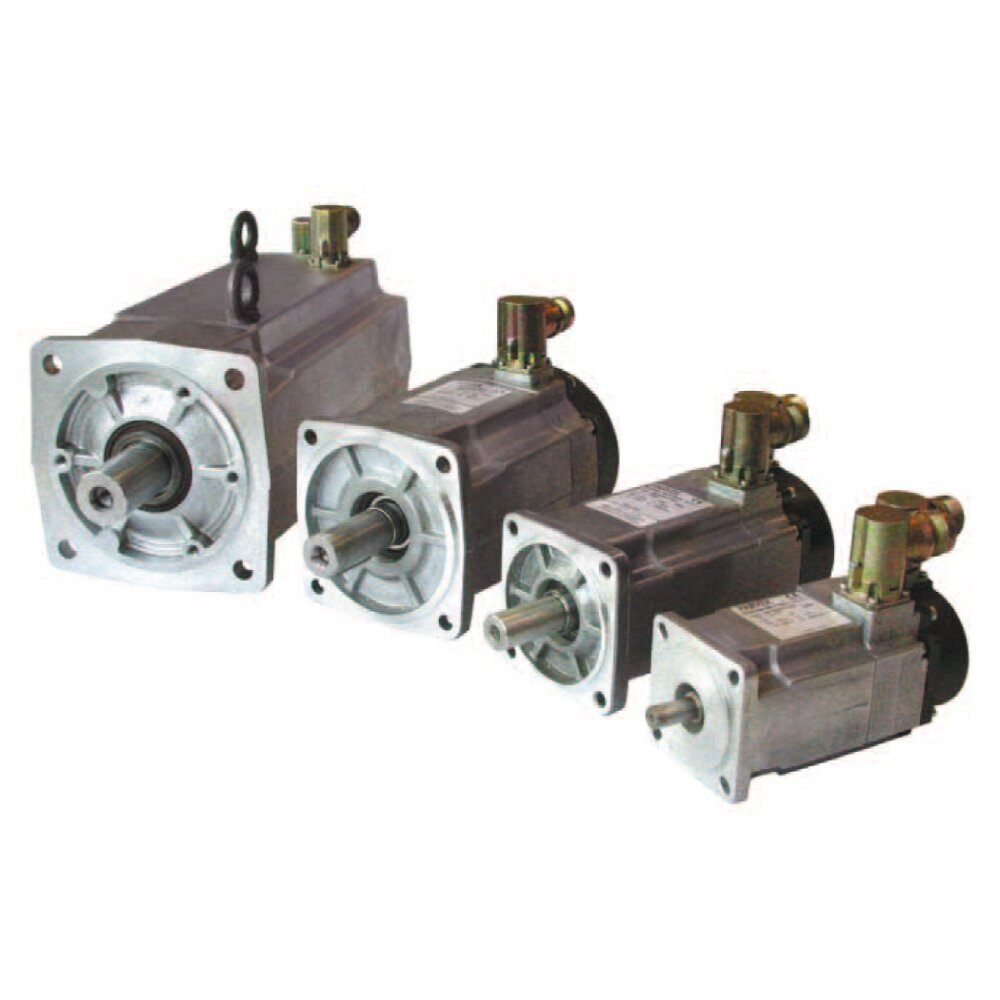

The NV series is a range of compact servo motors specially designed for high speed operation. NV motors are balanced with high accuracy to minimize the level of vibration and to increase their service life, making them particularly suitable for auxiliary spindle applications on machine tools. NV motors feature high dynamic performance and torque densities, while taking advantage of a large variety of options and customization possibilities.
Available in kit version on request.


Applications:
• Tooling Machines

Technical Overview:
• Motor Technology : permanent magnet synchronous servo motor
• Frame Sizes:
- 60mm
- 80mm
- 110mm
- 130mm

• Power Range: 0.7 ... 11 kW
• Torque Range: 0.4 ... 11.5 Nm
• Speed Range: 7000 ... 17000 min-1 (rated speed)
• Voltage Supply: 230 / 400 VAC
• Number of Poles: 10
• Cooling:
- Air-Cooled / Natural Convection
- Air-Cooled / Forced Ventilation (NV860V)

• Protection Level:
- IP64 (standard)
- IP65 (option)

• Feedback Sensors:
- Resolver
- Absolute Encoder (EnDat, Hiperface)
- Without Sensor

• Marking: CE


Advantages:
• High-Speed capabilities, precise and accurate positioning, high dynamic performance
• Compact and robust
• Design flexibility


Features:
• Mounting - flange with clearance holes
• Mechanical Interface - solid smooth shaft
• Feedback Sensor
- 2 pole resolver (standard)
- absolute encoders : EnDat, Hiperface
- without sensor (on request)

• Connections - connectors / terminal box (fan cooled motors)
• Options - thermal protection (PTC, Thermo Switch or KTY)
